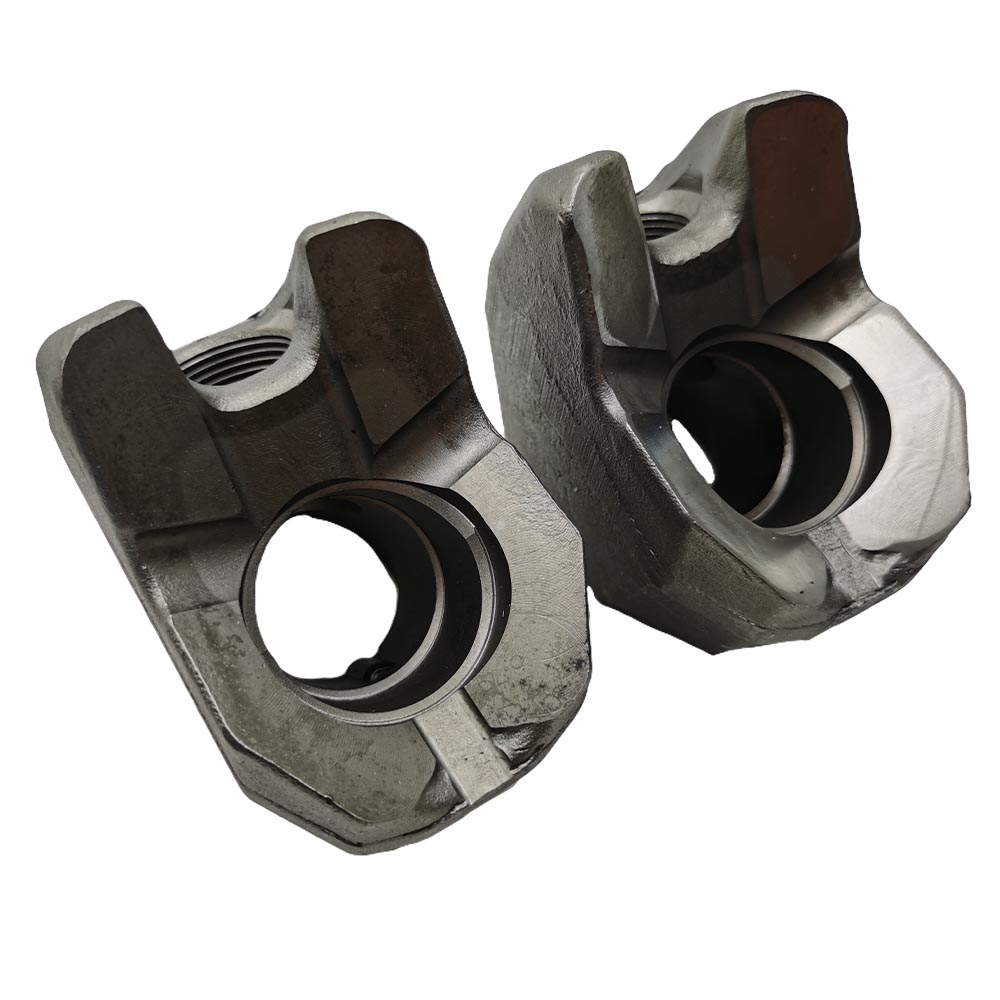

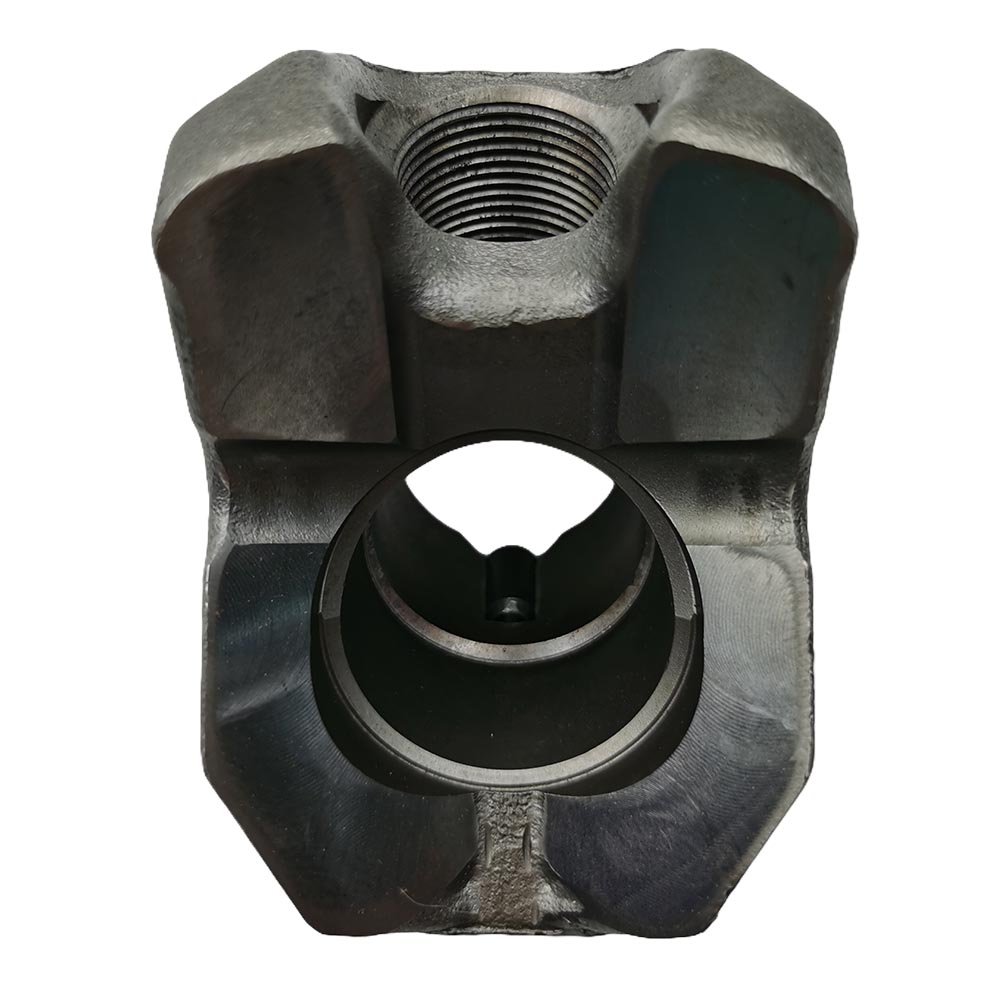

1. Intermediate Connection for Tool Mounting
The middle base holder provides a critical intermediate connection between the drum base holder and the tool holder, distributing cutting forces and allowing flexible tool positioning on the milling drum. Enhances tool retention stability and simplifies replacement. Essential for highway milling, pavement recycling, and large-scale excavation projects requiring reliable tooling systems.
2. Compatible with Wirtgen Milling Machine Models
Direct weld-on replacement for OEM middle base holder on Wirtgen W1900, W2000, W2100, W2200, and BG2000 series cold milling machines. Often replaced alongside drum base holder, tool holder (187002/C10LG-D-20) , milling picks (W6/20A²/2800874) , retaining pins, spacers, and wear rings during complete drum tooling maintenance.
3. High-Strength Forged Steel Construction
Manufactured from forged alloy steel with BNT22-W specification and heat treatment for maximum impact resistance and weldability. Precision-machined mounting surfaces ensure proper alignment. For maximum milling performance, inspect middle base holders for weld cracks during routine drum maintenance.
Product Specifications
Item | Details |
|---|---|
Part Number | 2198010 |
Product Name | Middle Base Holder / Intermediate Tool Holder |
Model | BNT22-W |
Brand Compatibility | Wirtgen |
Fit Models | W1900 / W2000 / W2100 / W2200 / BG2000 |
Weight | 1.15 kg |
Dimensions | 95 × 55 × 45 mm |
Material | Forged alloy steel, heat treated |
Specification | BNT22-W |
Function | Intermediate connection between drum base and tool holder |
Installation | Weld-on to drum base holder |
Related Parts | Drum Base Holder, Tool Holder (187002/C10LG-D-20), Milling Pick (W6/20A²/2800874), Retaining Pin, Spacer, Wear Ring |
Warranty | 1 year |
Installation | Weld-on installation |
