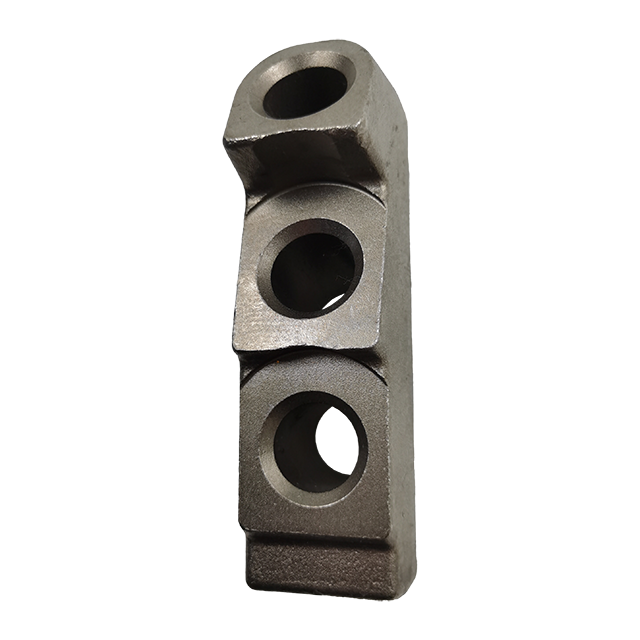

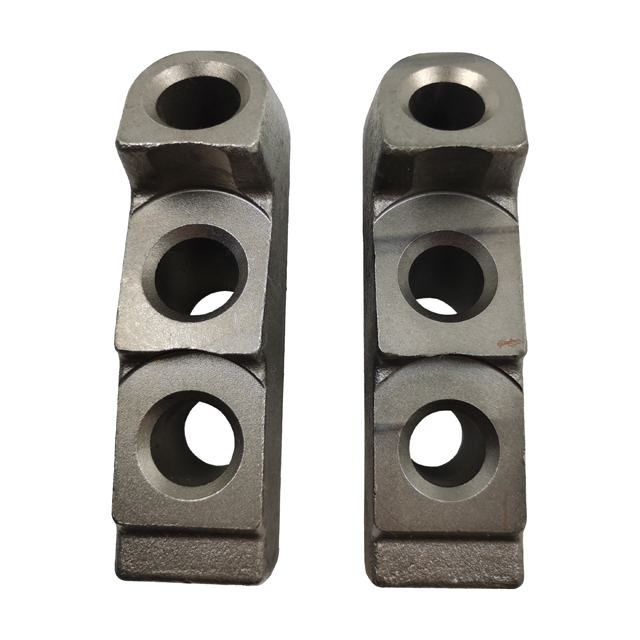

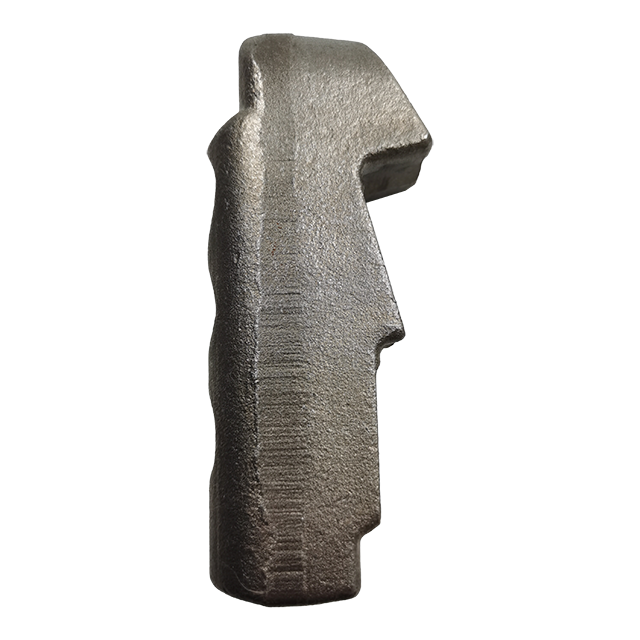

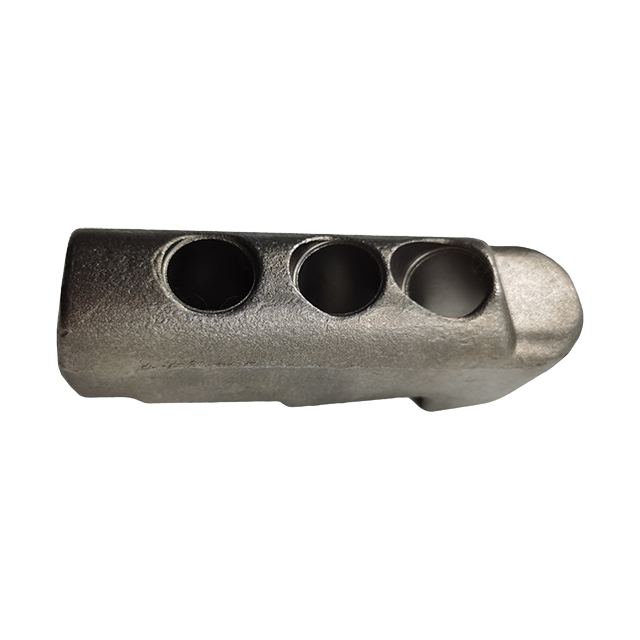

69902 162459 Milling Triple Teeth Holder for W2000

High Quality Milling Machine Spare Part Tool Holder PN 69902 162459 for Milling Machine W2000 WR2500

Model:
162459
Brand:
JESTIN

Availability:

Quantity:



Inquire Add to Basket

Product Description

Part Name	Tool Holder
Place of Origin	Suzhou, China
Part Number	69902 162459
Quality	High Guarantee
Weight	About 1.6 kg/pcs
MNQ	1pcs
Delivery Time	3-5 Days
Apply To	W1900 W2000 WR2500

Product Introduction

The triple tool holder of the cold milling machine's milling system is a modular tool holder integrated with three cutting tools, designed for efficient milling operations. Its core advantage is synchronous cutting through multiple tools, which improves work efficiency, reduces the load on a single tool, extends overall service life, and makes the milled pavement smoother. It is suitable for large-area and high-intensity construction scenarios.

Compared with the single tool holder, the differences are mainly as follows: first, cutting efficiency— the triple tool holder covers a larger cutting area at one time, significantly increasing work speed; second, balanced force— multiple tools share the cutting force, reducing wear on individual tools and lowering replacement frequency; third, application scenarios— the single tool holder, with a simple structure and low maintenance cost, is more suitable for small-scale repair, precision milling or complex working conditions, while the triple tool holder is better adapted to large-scale and high-standard road milling projects.

What is the function of the tool holder on the milling drum of a milling machine during operation?

The tool holder on the milling drum of a milling machine is a core bearing part. Its main functions during operation include three points: first, fixing the milling cutter head to ensure it does not loosen or fall off during high-speed rotating cutting; second, transferring the rotating power of the milling drum to drive the cutter head to cut pavement materials; third, dispersing cutting impact force, reducing cutter head wear, and extending the overall service life of the cutting tools.

How to choose the right milling machine tool holder?

When choosing the type of milling machine tool holder, you need to take four factors into comprehensive consideration: in terms of operation scale, the triple tool holder is preferred for large-area and high-intensity milling operations, while the single tool holder is more suitable for small-scale and precision work; for pavement materials, the multi-cutter head design of the triple tool holder provides better cutting performance for high-hardness pavement, while the single tool holder may be sufficient for soft materials; in terms of working conditions, the triple tool holder has obvious efficiency advantages under standard conditions, while the single tool holder has better adaptability under complex or special conditions; in terms of cost-effectiveness, although the triple tool holder requires a higher initial investment, its advantages in efficiency and service life may lead to lower overall costs in long-term use.
