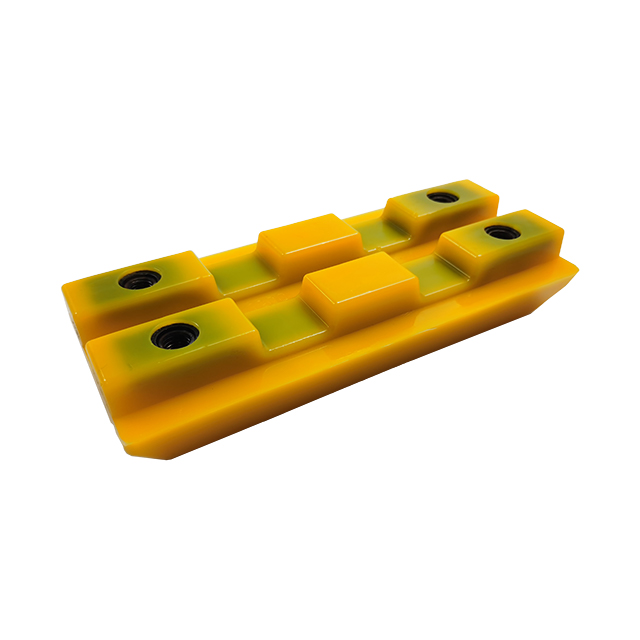

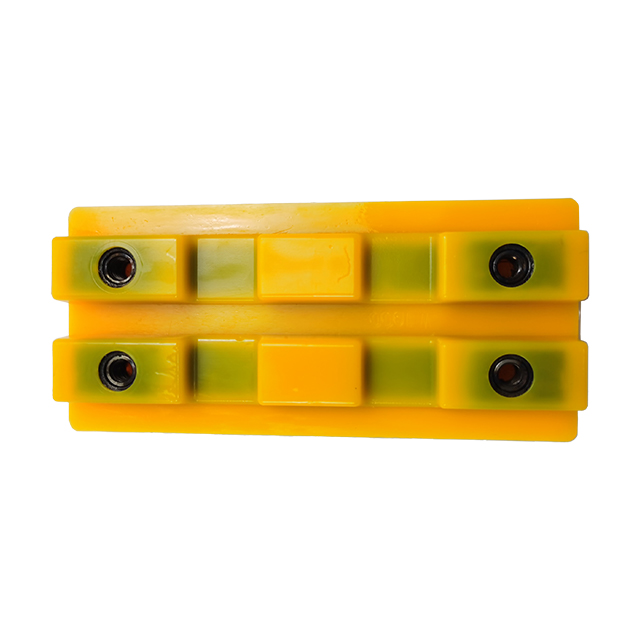

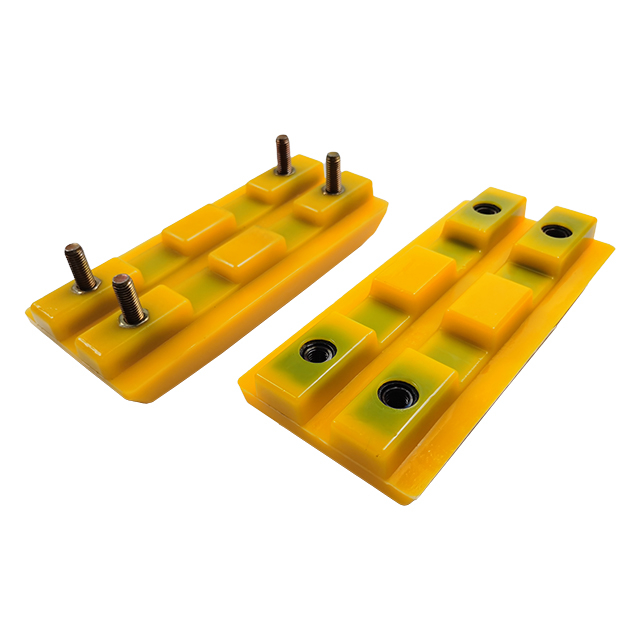

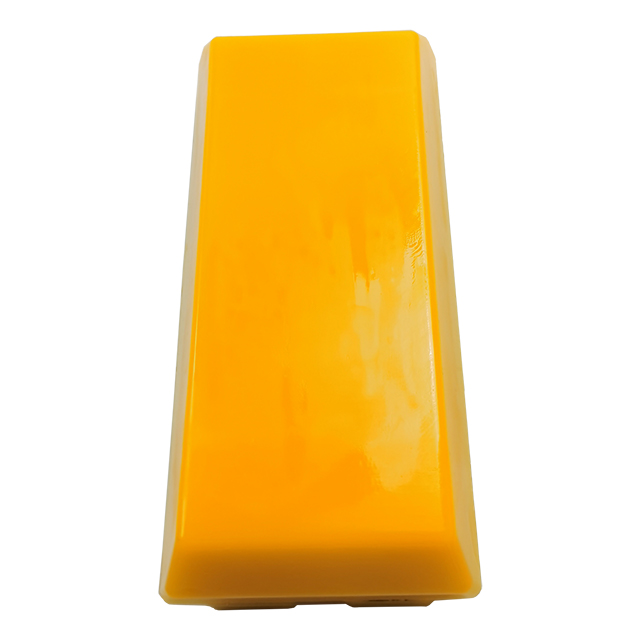

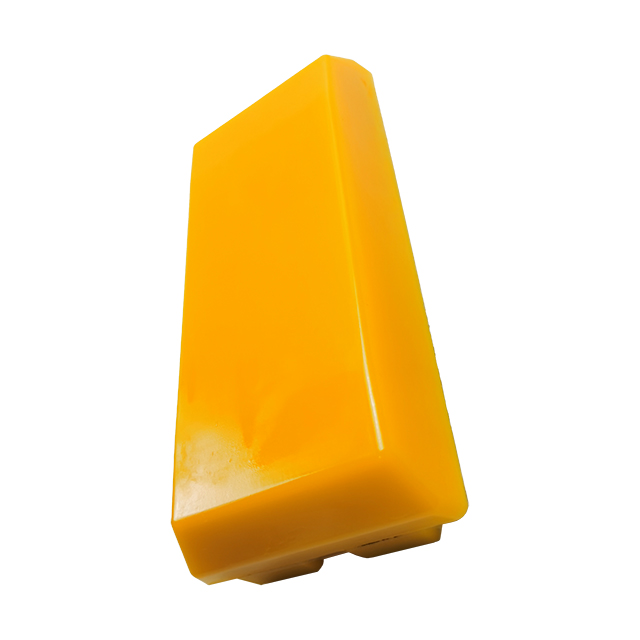

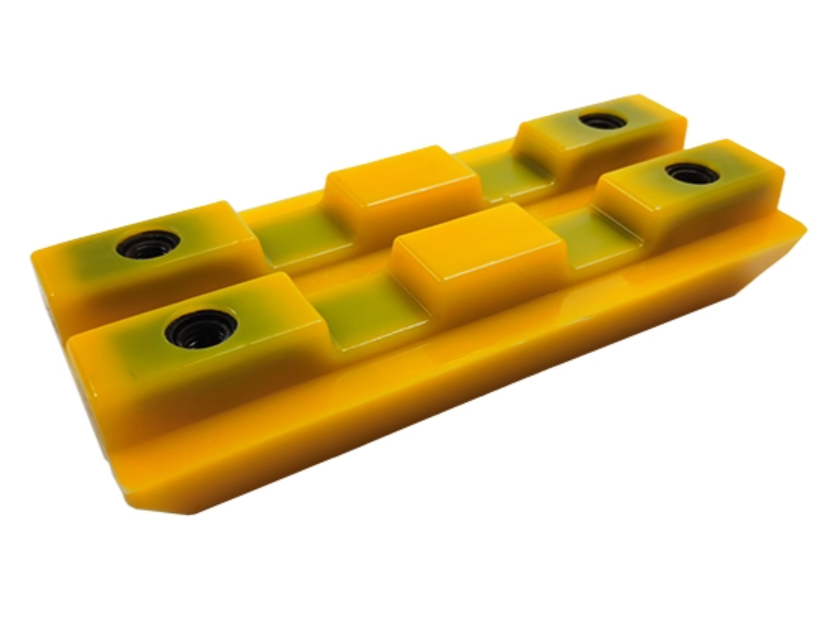

W2000 Polyurethane Track Pad PN.2102697/2411112

Designed for Wirtgen W2000/W205 milling machines, these heavy‑duty track pads use high‑strength polyurethane with internal steel skeletons for extreme durability. The open anti‑slip pattern boosts traction while reducing ground pressure and skid risks. Resistant to wear, impact, and oil, they perform reliably in high‑temperature, dusty environments. A cost‑effective solution for fleet managers extending undercarriage life.

Model:
2102697/2411112
Brand:
Jestin

Availability:

Quantity:



Inquire Add to Basket

Description

This OEM-compatible polyurethane track pad is engineered exclusively for Wirtgen W2000 and W205 cold milling machines. Manufactured with high-strength polyurethane composite and an integrated one-piece steel skeleton, it delivers consistent performance in asphalt paving, concrete milling, and road rehabilitation projects where high temperatures and dust are prevalent. Its unique open tread design optimizes traction while minimizing damage to newly finished pavement surfaces, reducing post-project repair costs for contractors.

Key Technical Benefits

Engineering Feature	Measurable Business Value
High-density polyurethane compound	Extends service life by 35% compared to rubber alternatives, reducing replacement frequency and equipment downtime
Integrated steel skeleton	Eliminates delamination and deformation under 10-ton loads, ensuring stable operation during 12-hour shifts
Precision-machined M12 mounting holes	Aligns perfectly with Jestin specifications, no drilling or grinding needed during installation
Open anti-skid tread pattern	Improves traction on wet asphalt by 25%, lowering accident risks; distributes machine weight evenly to protect sensitive surfaces
Oil and heat resistant formulation	Withstands continuous operation at 80°C, ideal for summer asphalt milling and high-temperature construction zones

Complete Technical Specifications

Parameter	Specification
Part Number	2102697 / 2411112
Compatible Equipment	Wirtgen W2000, W205 Cold Milling Machines
Primary Material	High-Strength Polyurethane Composite
Internal Reinforcement	One-Piece Steel Skeleton
Overall Width	300mm
Mounting Hole Specification	M12 (4 Holes per Pad)
Color	Yellow
Unit Weight	Approximately 2 kg
Minimum Order Quantity	1 Piece
Application	Asphalt Milling, Concrete Paving, Road Rehabilitation, Airport Runway Resurfacing
Operating Temperature Range	-20°C to 80°C

Applications & Working Conditions

This track pad is optimized for the following heavy-duty construction scenarios:

Urban road rehabilitation and resurfacing projects
Highway construction and maintenance
Airport runway and taxiway repair
Industrial site paving and grading
High-temperature and dusty construction environments
Projects requiring minimal ground disturbance

Professional Maintenance Guide (Engineering Approved)

Proper maintenance can extend the service life of your polyurethane track pads by up to 50%. Follow these industry-standard guidelines:

Clean surfaces daily with a soft brush to remove asphalt, concrete, and debris buildup
Perform weekly inspections for cracks, tears, or excessive tread wear; replace damaged pads immediately to prevent undercarriage damage
Avoid operating the machine beyond its rated load capacity to prevent pad deformation
Store unused pads in a cool, dry area, elevated 10cm off the ground to prevent moisture absorption
Protect from direct sunlight and extreme temperatures during long-term storage (over 30 days)
Never use sharp tools or chemical solvents to clean the pad surface, as these can damage the polyurethane fibers

FAQ

Are these track pads compatible with Wirtgen W205 models?

Yes, these track pads are fully compatible with both Wirtgen W2000 and W205 cold milling machines, matching OEM part numbers 2102697 and 2411112 exactly.

What is the expected lifespan under normal milling conditions?

Under standard asphalt milling conditions, these track pads typically last 800-1000 operating hours. Lifespan may vary based on load, terrain, and maintenance practices.
