| Quantity: | |
|---|---|
Part Name | Tool Holder |
Machine | Milling machine |
Machine Model | PM-200 PM-201 |
Material | Steel |
Specifications | 10 pcs/box |
Warranty | 1 Year |
Weight | 1 kg/pcs |
MNQ | 1pcs |

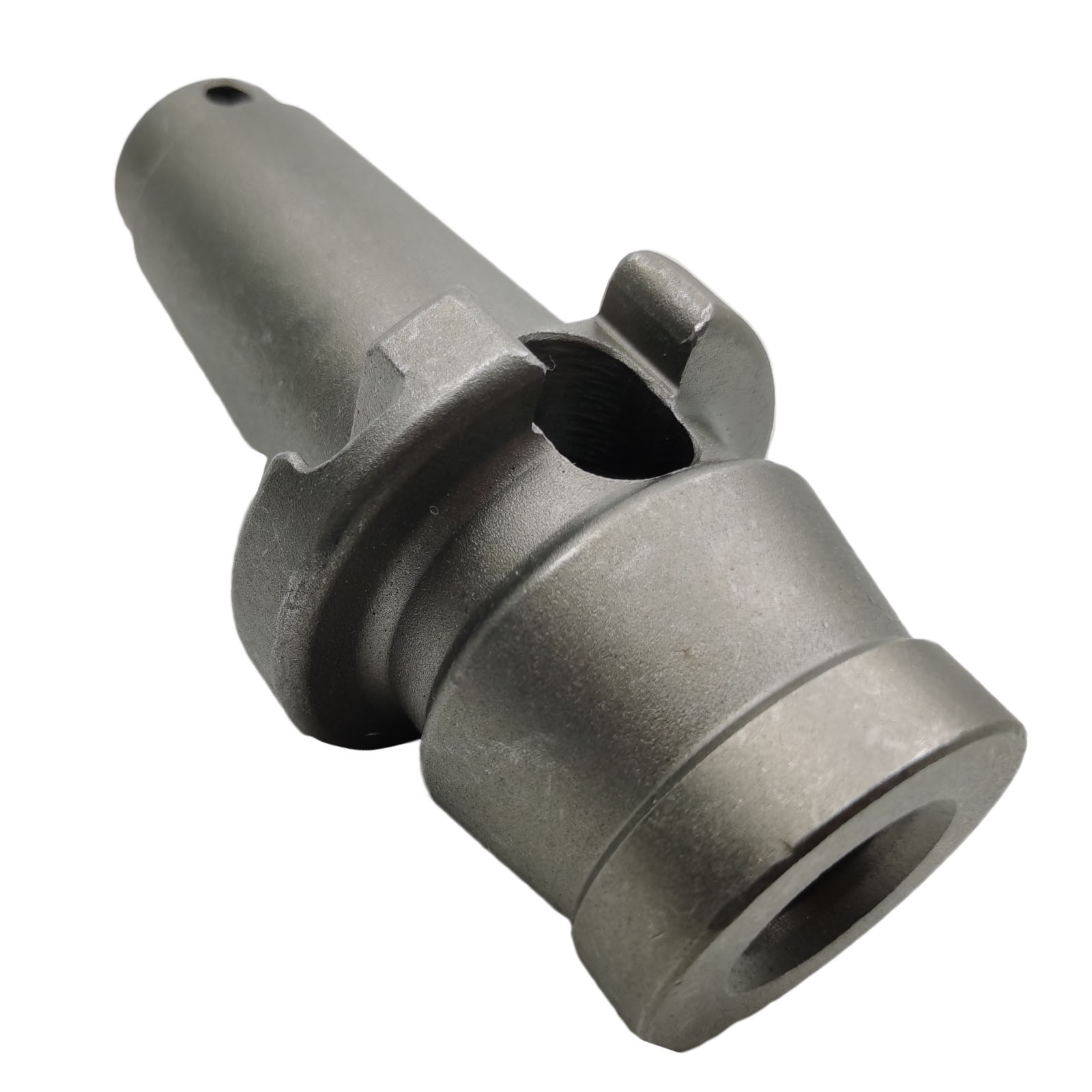

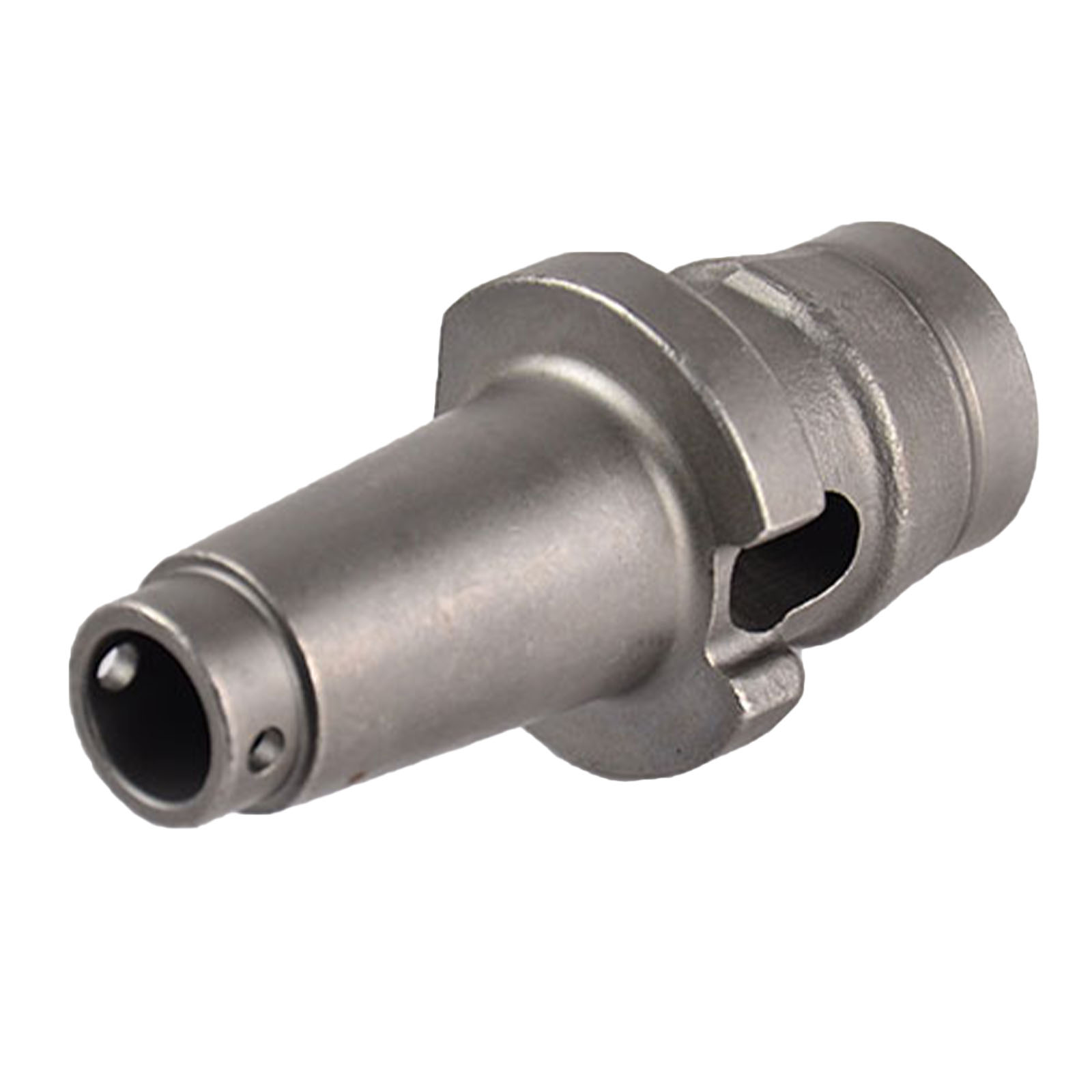

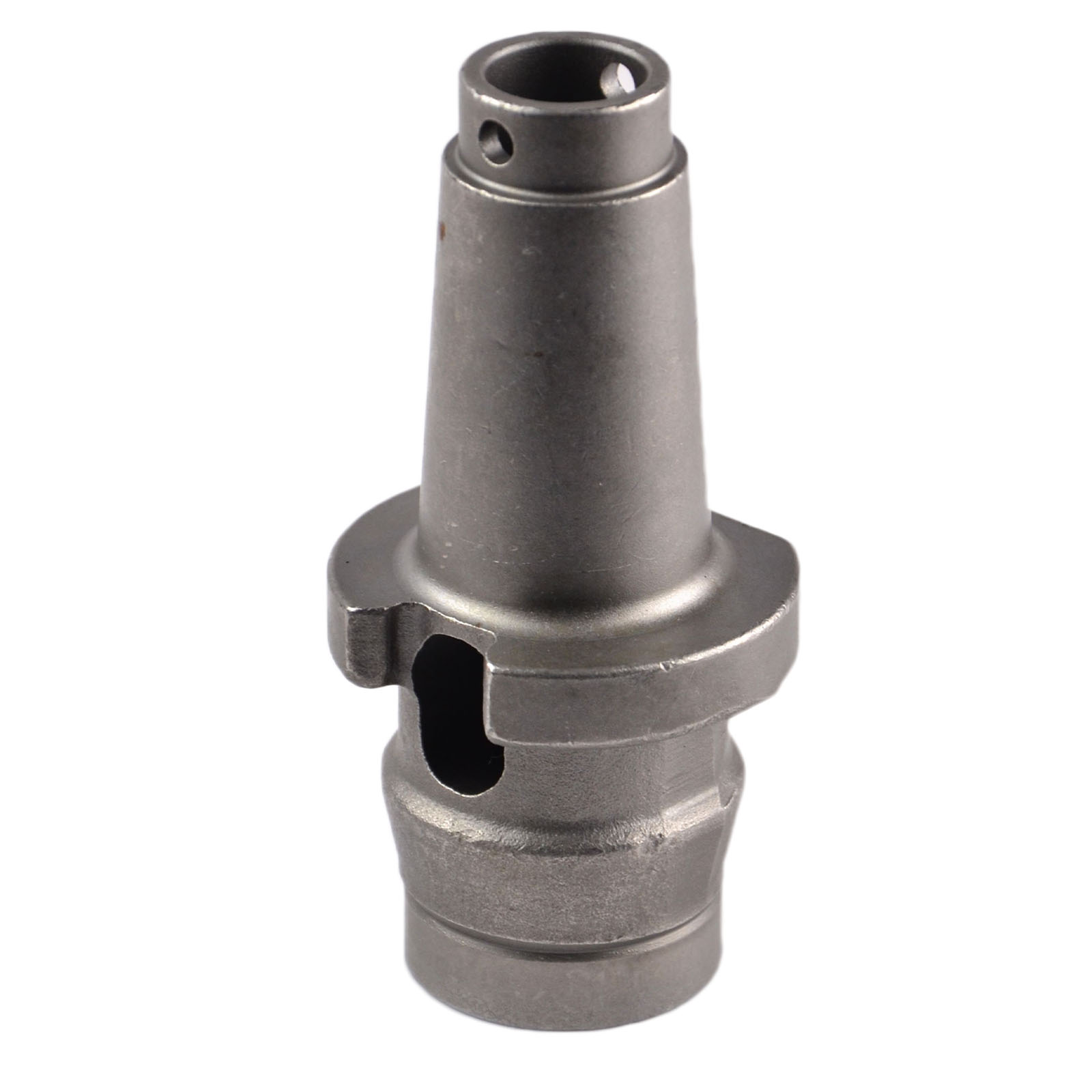

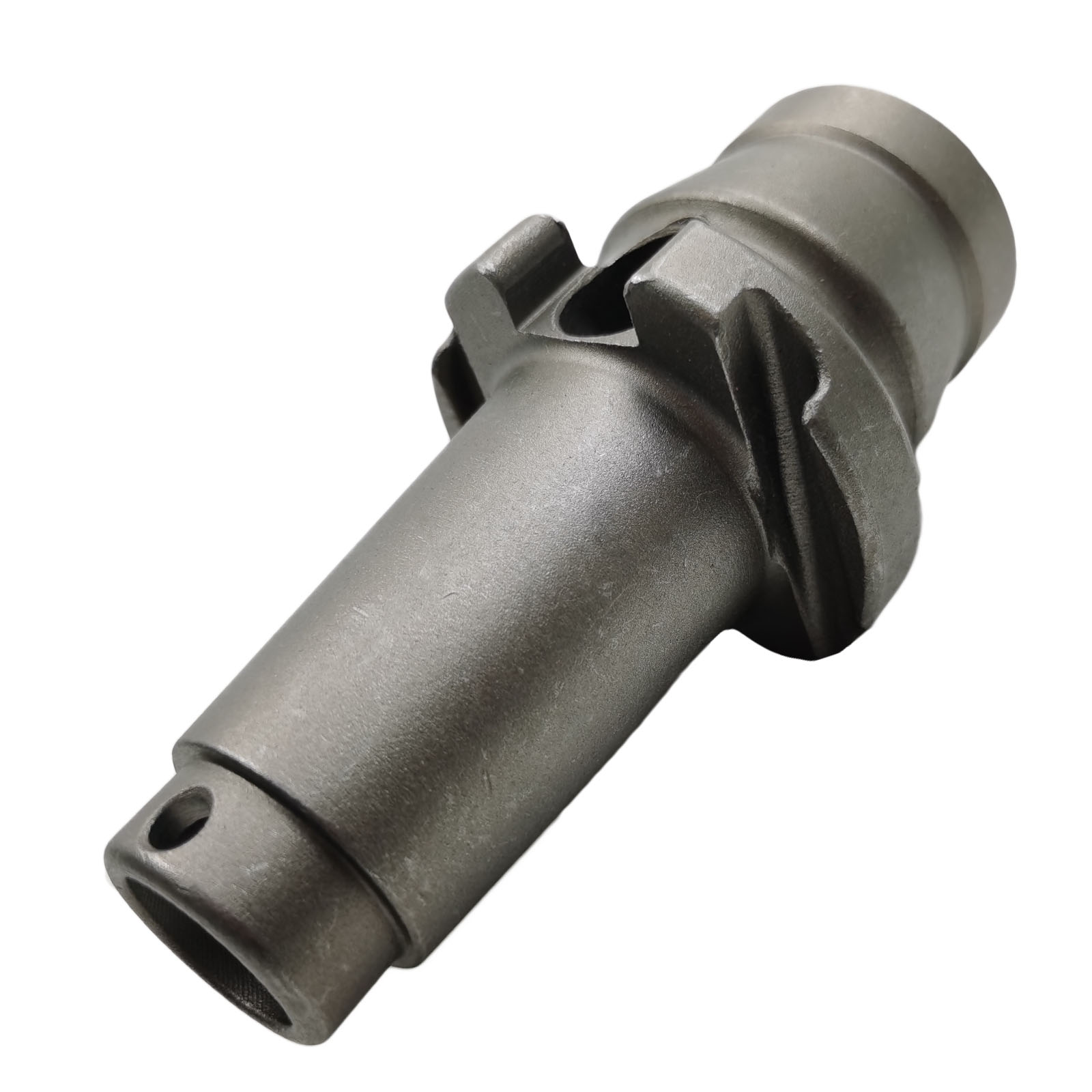

The PM-200 & PM-201 Milling Machine Tool Holder, with part numbers 241-4559 and 506-0013, is a precision-engineered component developed by JST, a trusted China-based manufacturer of milling machine parts. Specifically designed to fit PM-200 and PM-201 milling machines—widely used in road construction and pavement recycling—this tool holder securely clamps milling cutters, ensuring stable and accurate cutting operations. It plays a critical role in maintaining the quality of milled surfaces, reducing cutter vibration, and extending the lifespan of both the cutter and the milling machine. Suitable for use in asphalt, concrete, and composite pavement milling, this tool holder is a reliable choice for construction companies, road maintenance contractors, and infrastructure projects worldwide.
Highway milling requires high precision to ensure the milled surface meets strict flatness and smoothness standards for subsequent asphalt overlay. The PM-200 & PM-201 Tool Holder addresses this by providing a tight grip on milling cutters, minimizing lateral movement during operation. This reduces surface irregularities, such as waviness or uneven grooves, ensuring the highway surface is safe for high-speed traffic and reducing the need for rework.
Municipal roads often have narrow lanes and complex layouts, requiring milling machines to operate in confined spaces. The compact design of the PM-200 & PM-201 Tool Holder allows it to fit into tight areas of the milling machine, enabling precise cutting along curbs, sidewalks, and traffic islands. It also reduces cutter replacement time, as the holder’s quick-release mechanism allows workers to swap cutters in under 5 minutes, keeping the project on schedule.
Airport runways demand extreme durability and precision, as even minor surface defects can affect aircraft safety. The PM-200 & PM-201 Tool Holder’s high load-bearing capacity (up to 500kg) ensures it can withstand the heavy cutting forces required for thick runway pavement milling. Its corrosion-resistant material also protects it from aviation fuel spills and harsh weather conditions, ensuring long-term reliability in airport environments.
• Precision Machining: Each tool holder undergoes CNC machining with a tolerance of ±0.02mm, ensuring a perfect fit with PM-200 and PM-201 milling machines. This eliminates gaps between the holder and the machine spindle, reducing vibration and improving cutting accuracy.
• High-Durability Material: Made from forged chrome-molybdenum steel, the tool holder offers excellent tensile strength and wear resistance. It can withstand continuous high-temperature and high-pressure operations without deformation, extending its service life to over 5000 working hours.
• Quick-Release Mechanism: Equipped with a spring-loaded locking pin, the tool holder allows for fast and easy cutter replacement. This reduces downtime during cutter changes, increasing the overall productivity of the milling machine.
• Dimensions: The tool holder has an outer diameter of 80mm and a length of 180mm, with a spindle interface that matches the PM-200/PM-201 machine’s 60mm diameter spindle.
• Clamping Force: It provides a maximum clamping force of 80kN, ensuring the milling cutter remains securely in place even during heavy cutting.
• Surface Coating: The holder’s surface is treated with a TiAlN (Titanium Aluminum Nitride) coating, which reduces friction between the holder and the cutter. This minimizes heat generation and prevents cutter seizure, especially when milling hard materials like concrete.
• Compatibility: While designed for PM-200 and PM-201 machines, it can also be adapted to other milling machine models with minor modifications, subject to JST’s technical approval.
• Compatibility Testing: JST offers free compatibility testing for customers using non-PM-200/PM-201 milling machines, ensuring the tool holder integrates seamlessly with their equipment before purchase.
• Maintenance Scheduling: A dedicated service team provides regular maintenance reminders based on the tool holder’s usage hours. This includes inspections for wear, lubrication checks, and replacement of worn parts, ensuring optimal performance.
• Spare Parts Supply: JST maintains a global inventory of spare parts for the tool holder, including locking pins, springs, and coating replacements. Customers can receive spare parts within 3-5 business days via international courier services.
• On-Site Service: For large-scale projects or urgent issues, JST dispatches technical engineers to the customer’s site to provide on-site installation, maintenance, and troubleshooting support, minimizing project delays.
