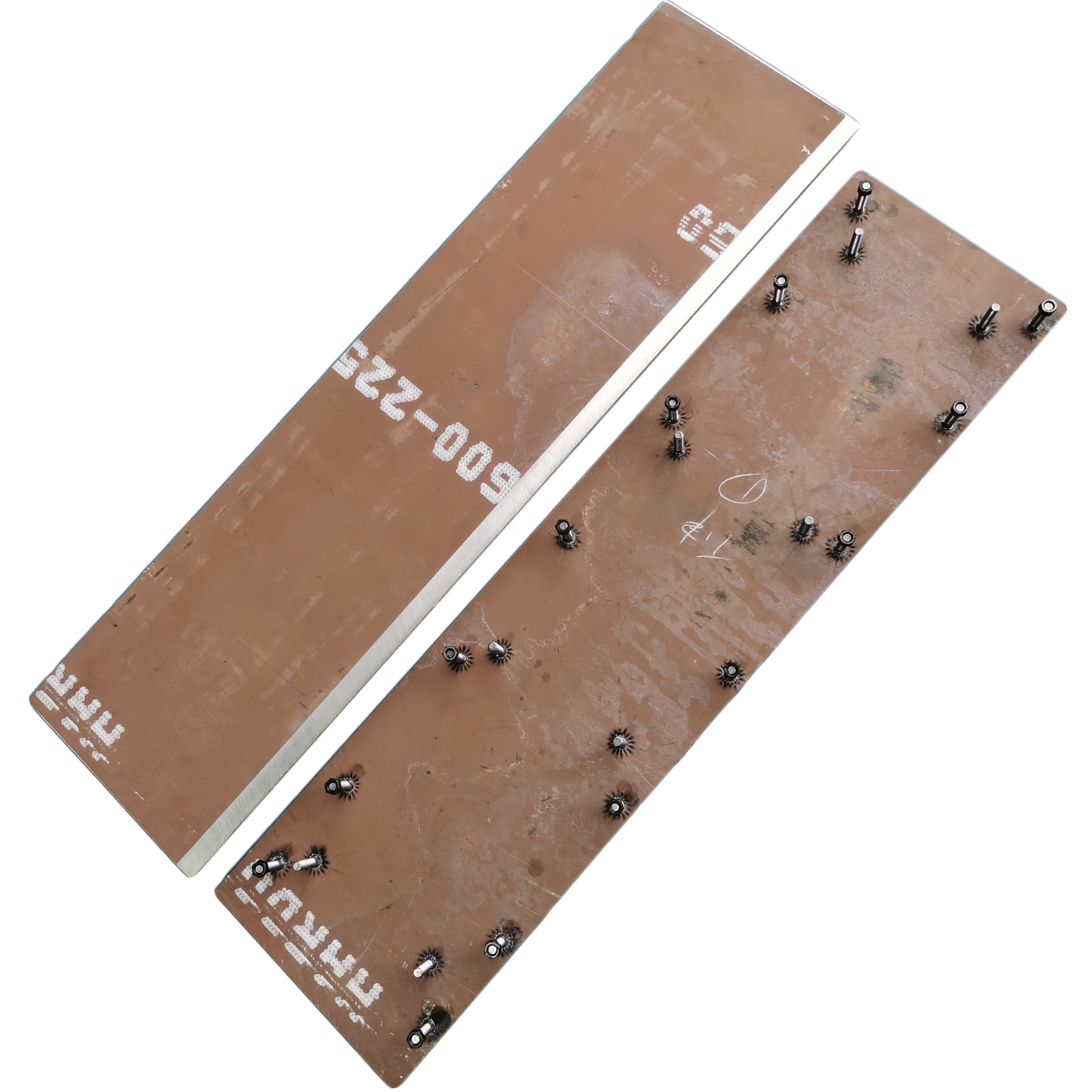

The 2042536 and 2042535 screed plates are bottom plates designed for ABG AB500-2TV asphalt paver screed systems. Sold as a left-right pair, these bolt-on plates function as direct replacement parts for original screed bottom components. They are applied in asphalt paving operations to achieve smooth pavement surface finishing and initial compaction. Suitable for enterprise customers in road construction, municipal engineering and infrastructure sectors, these plates work with matching screed components to support complete screed system maintenance.
Installed at the bottom of the screed system, these plates contact the asphalt mixture directly during paving operations. The plate surface contributes to the formation of a uniform asphalt mat surface, and works with the screed compaction system to deliver initial compaction to the paved material. The plate condition directly affects the flatness of the paved asphalt surface, and is a key factor influencing paving quality. Stable plate performance supports continuous paving work under normal construction schedules.
These screed bottom plates are designed for use in various asphalt paving projects. Common application scenarios include highway pavement paving, airport runway construction, bridge deck paving, and high-standard urban road projects. They adapt to conventional asphalt mixture paving operations, and match the working parameters of mainstream medium and large asphalt pavers. For projects with strict requirements on pavement flatness, regular replacement of worn screed plates helps maintain stable paving quality.
These screed plates are compatible with screed systems from ABG, Vogele, and Dynapac. Specific fit models include ABG AB500-2TV, AB500-2, AB600-2, Vogele S1800-3, Vogele S2100-3, Dynapac SD2500, and Dynapac SD2530. The plates are manufactured according to the installation dimensions of original equipment parts, and can be used as a direct replacement part during screed maintenance. Buyers can confirm their screed model before commercial procurement to ensure matching.
In full screed maintenance work, these bottom plates are usually replaced together with related wear components. Matching parts include tamper bar (part number 4812064058), screed wiper rubbers (part numbers 4601112254 / 4601112253), screed heating elements, and wear strips. Replacing all related wear parts in the same maintenance cycle helps ensure consistent fitting accuracy between components, and reduces the frequency of on-site adjustments. For industrial clients carrying out full screed refurbishment, supporting procurement of all related parts can simplify procurement procedures and shorten equipment downtime.
These screed plates are manufactured from alloy steel, and undergo induction hardening treatment on the working surface. The induction hardening process forms a hardened layer on the plate surface, which adapts to the friction and wear during continuous contact with asphalt mixture. The base material maintains certain toughness to adapt to the load during screed vibration and compaction operations.
The working surface of the screed plate is processed by precision grinding. The ground surface has uniform flatness, which helps achieve consistent asphalt mat finishing effect. The mounting holes are pre-drilled according to original equipment dimensions, which matches the bolt hole positions on the screed base and supports direct bolt-on replacement. Consistent hole position accuracy reduces installation adjustment work and shortens maintenance time.
Item | Details |
|---|---|
Part Number | 2042536 / 2042535 (left/right pair) |
Product Name | Screed Plates / Screed Bottom Plates |
Brand Compatibility | ABG / Vogele / Dynapac |
Fit Models | AB500-2TV / AB500-2 / AB600-2 / S1800-3 / S2100-3 / SD2500 / SD2530 |
Weight (each) | 5.2 kg (2042536) / 5.2 kg (2042535) |
Dimensions | 560 × 150 × 16 mm |
Material | Induction-hardened alloy steel |
Surface Finish | Precision-ground |
Related Parts | Tamper Bar (4812064058), Wiper Rubber (4601112254/4601112253), Screed Heater, Wear Strip |
Warranty | 1 year |
Installation | Bolt-on replacement |
These screed plates adopt a bolt-on installation design. During replacement, the old plates can be removed directly by detaching the fixing bolts, and the new plates can be installed after cleaning the screed base mounting surface. It is recommended to tighten the bolts according to the specified torque sequence, to ensure uniform stress on the plate and avoid deformation. After installation, the flatness of the plate bottom surface should be checked to ensure consistent contact with the paved material.
During daily equipment inspection, the wear condition of the screed plate working surface should be checked regularly. When the plate surface shows obvious uneven wear, local damage, or thickness reduction that affects paving flatness, the plates should be replaced in time. During daily maintenance, the plate surface can be cleaned after construction to avoid residual asphalt solidification that affects the next use. At the same time as replacing the plates, the working status of screed heaters and vibrators can be inspected.
The part numbers 2042536 and 2042535 correspond to the right and left screed plates respectively, and the product is supplied as a left-right pair. The two plates have the same weight and dimensions, and are designed for matching installation on both sides of the screed system.
These screed plates are compatible with Vogele S2100-3 paver screed systems that match the AB500-2TV specification series. Buyers can confirm their specific screed model and specification before procurement to ensure fitting consistency.
The 1-year warranty covers manufacturing defects of the product under normal use conditions. Damage caused by improper installation, overloaded construction, or abnormal working conditions is not included in the warranty scope.
