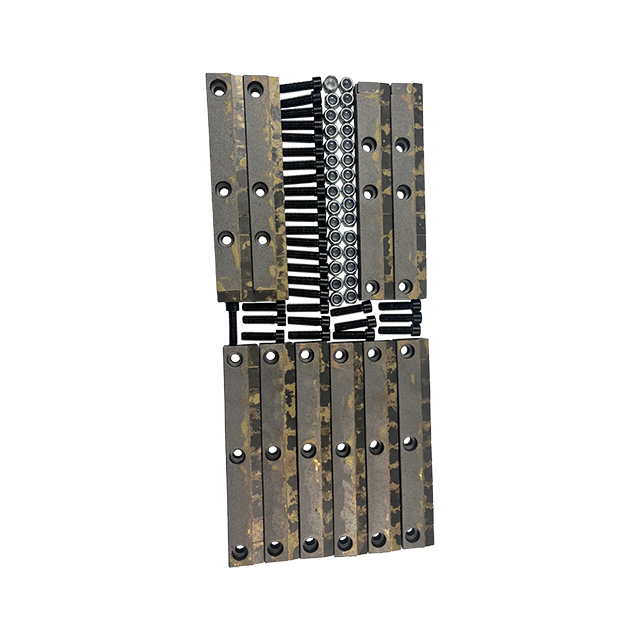

The 194410 scraper blade kit is a conveyor belt scraper assembly designed for Wirtgen cold milling machines. It serves as a replacement component for the discharge belt cleaning system, targeting residual material buildup on belt surfaces during milling operations. This kit supports routine conveyor system maintenance for industrial clients in road construction and pavement engineering sectors.
The primary function of this kit is to remove adhered asphalt and concrete material from the discharge belt surface. During cold milling operations, fragmented pavement material often adheres to the belt and carries back through the return path, which can lead to material accumulation around pulleys and increased abrasion on the belt surface. By clearing residual material at the discharge end, the scraper kit reduces material carryback and lowers belt wear rates over extended operation cycles.
This scraper kit supports consistent material discharge efficiency during daily operation. It applies to highway milling, pavement recycling, and large-scale excavation projects where continuous belt operation is required. Regular use of compatible scraper blades supports steady conveyor system performance across standard milling work cycles, and reduces the frequency of manual belt cleaning during work shifts.
The scraper blades in this kit are made of polyurethane material, with physical properties suited for repeated contact with abrasive pavement materials. The full kit also includes mounting brackets and mounting hardware for complete assembly replacement.
The polyurethane material used for the blades has abrasion-resistant properties, allowing for sustained contact with asphalt and concrete residues without rapid edge wear. The material also has a degree of flexibility, which allows the blade edge to maintain full contact with the belt surface while avoiding abrasive damage to the belt substrate itself.
The blades operate within a temperature range of -20°C to 80°C, covering typical ambient temperature conditions for most road construction environments across different seasons. For consistent cleaning performance, inspection of blade wear during routine service intervals is recommended, with replacement performed when wear reduces effective belt contact.
This scraper blade kit is designed as a bolt-on replacement for original equipment scraper assemblies on specified Wirtgen milling machine models. It aligns with original mounting points for direct installation without additional structural modification.
The 194410 kit is compatible with the following Wirtgen cold milling machine models: W1900, W2000, W2100, W2200, and W150 series. Each model shares compatible mounting dimensions for the discharge belt scraper assembly, allowing for cross-model use of this replacement kit in mixed fleets.
This scraper kit is often replaced alongside other conveyor system components during comprehensive maintenance. Related parts that are commonly serviced at the same interval include: conveyor belt, return pulley (111225), guide plate (112519), and rubber protective cover (123912). Replacing these components together supports complete conveyor system refurbishment and reduces separate maintenance downtime for field equipment.
Item | Details |
|---|---|
Part Number | 194410 |
Product Name | Scraper Blade Kit / Conveyor Belt Scraper Kit |
Brand Compatibility | Wirtgen |
Fit Models | W1900 / W2000 / W2100 / W2200 / W150 |
Kit Weight | 3.6 kg |
Blade Material | High-grade polyurethane, wear-resistant |
Blade Dimensions | 200 × 75 × 15 mm (each) |
Included Components | Scraper blades, mounting brackets, hardware |
Operating Temperature | -20°C to 80°C |
Function | Conveyor belt residue removal |
Related Parts | Conveyor Belt, Return Pulley (111225), Guide Plate (112519), Rubber Protective Cover (123912) |
Warranty | 1 year |
Installation | Bolt-on installation |
Proper installation and routine maintenance support consistent performance of the scraper kit and extend the service life of associated conveyor components.
This kit uses a bolt-on installation design, matching the original mounting points on compatible milling machine models. Installation requires standard workshop tools and does not involve drilling, welding, or other modification to the machine structure. Maintenance teams can replace worn scraper assemblies directly with this kit during scheduled service stops.
During regular machine maintenance, personnel should inspect the scraper blades for edge wear, cracking, or deformation. Blades that have worn beyond effective contact with the belt surface should be replaced promptly to maintain cleaning performance and prevent unnecessary belt abrasion. Aligning scraper blade replacement with scheduled conveyor system servicing reduces unplanned downtime on job sites.
This kit is compatible with Wirtgen W1900, W2000, W2100, W2200, and W150 series cold milling machines. It is designed to match original mounting specifications for these models.
The kit includes scraper blades, mounting brackets, and all required mounting hardware for full assembly replacement.
The blades are rated for operation within a temperature range of -20°C to 80°C, covering typical field conditions for road milling projects.
Yes, the 194410 scraper blade kit comes with a 1-year warranty.
For commercial procurement teams sourcing replacement parts for milling machine fleets, this scraper kit provides a standardized replacement option for conveyor system maintenance. Its verified model compatibility and bolt-on installation support efficient service scheduling and steady equipment operation across construction projects.
