1. Precision Depth Detection for Consistent Milling
The depth sensor measures vertical position relative to a reference surface (such as existing pavement or stringline) and sends continuous signals to the controller, which adjusts milling drum height automatically. Ensures consistent cutting depth across varying terrain. Essential for highway milling, pavement recycling, precision leveling, and airport runway rehabilitation projects requiring strict depth tolerances.
2. Compatible with Wirtgen Milling Machine Models
Direct plug-and-play replacement for OEM depth sensor on Wirtgen W1900, W2000, W2100, W2200, W150, W120, W100, and BG2000 series cold milling machines. Often replaced alongside depth controller, grade sensor, ECU, wire harness, and mounting hardware during complete depth control system service.
3. Rugged, Job-Site Ready Construction
Housed in sealed, vibration-resistant enclosure protecting against dust, moisture, and temperature extremes from -20°C to 70°C. Features durable sensor rod or non-contact measuring technology. For maximum depth control reliability, inspect sensor rod for damage and check wire harness connections during replacement.
Item | Details |
|---|---|
Part Number | 115640 |

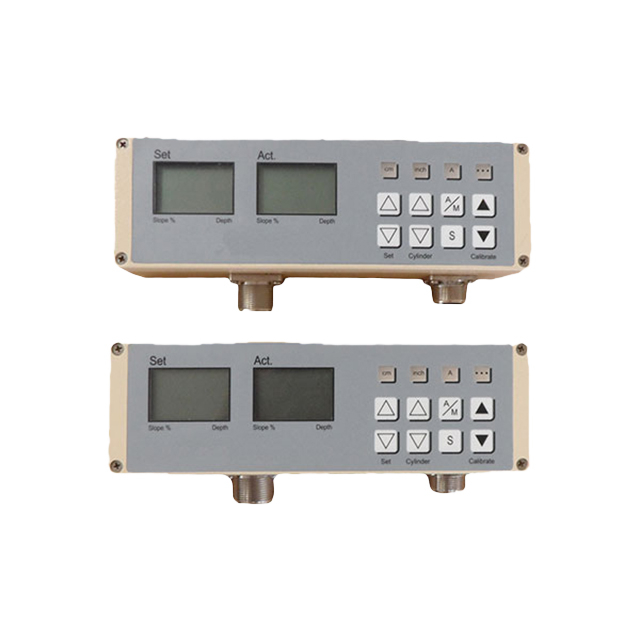

Product Name | Depth Sensor / Milling Depth Sensor |
Brand Compatibility | Wirtgen |
Fit Models | W1900 / W2000 / W2100 / W2200 / W150 / W120 / W100 / BG2000 |
Weight | 0.65 kg |
Dimensions | 140 × 60 × 45 mm |
Sensor Type | Contact or non-contact (ultrasonic/laser) |
Output Signal | Analog (0-10V) or CAN bus |
Measuring Range | 0 - 300 mm |
Operating Temperature | -20°C to 70°C |
Protection Rating | IP67 (dust/water resistant) |
Function | Milling depth detection for automatic grade control |
Related Parts | Depth Controller, Grade Sensor, Travel Control Handle (192494), ECU, Wire Harness, Mounting Hardware |
Warranty | 1 year |
Installation | Plug-and-play replacement |
