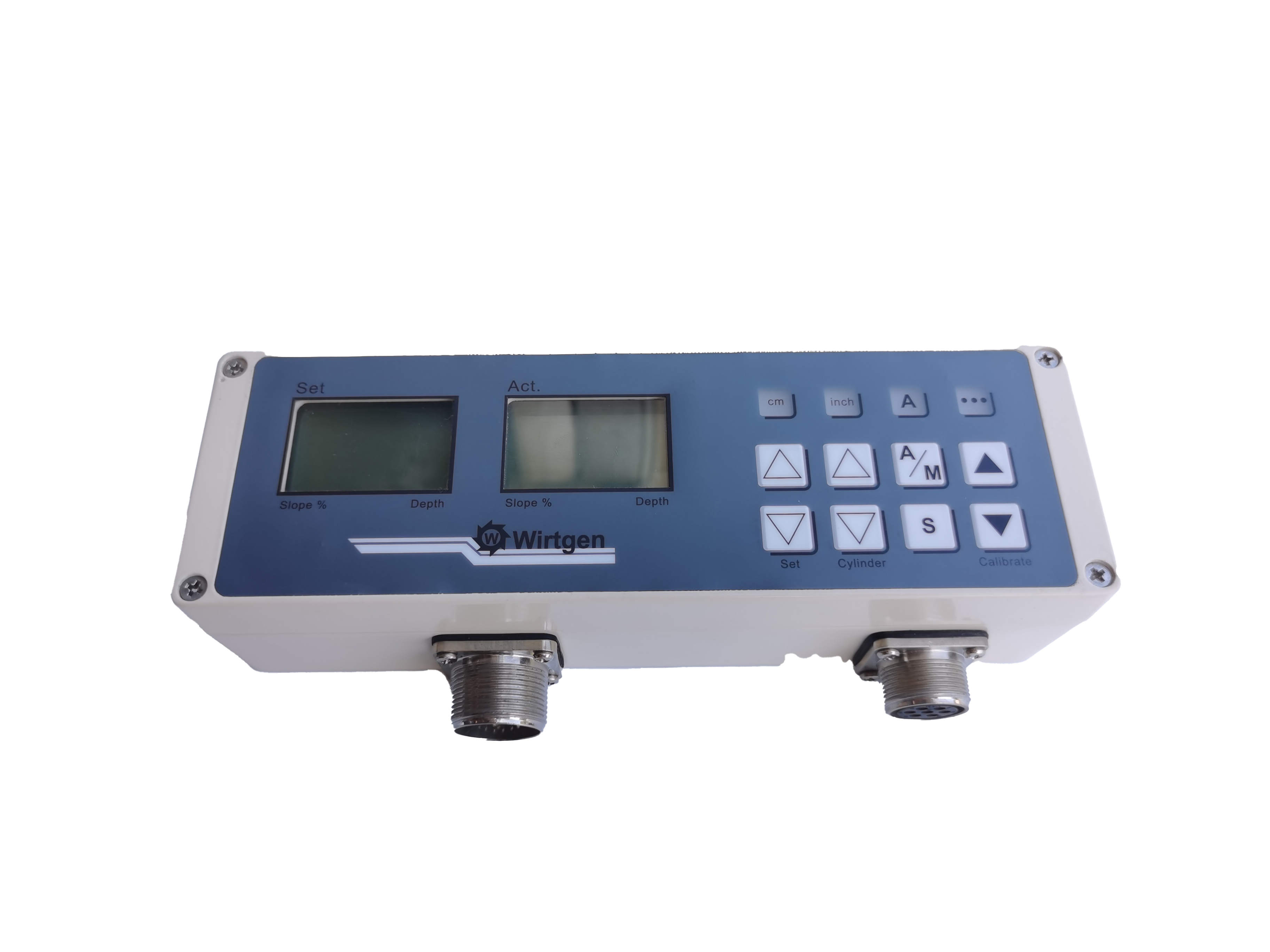

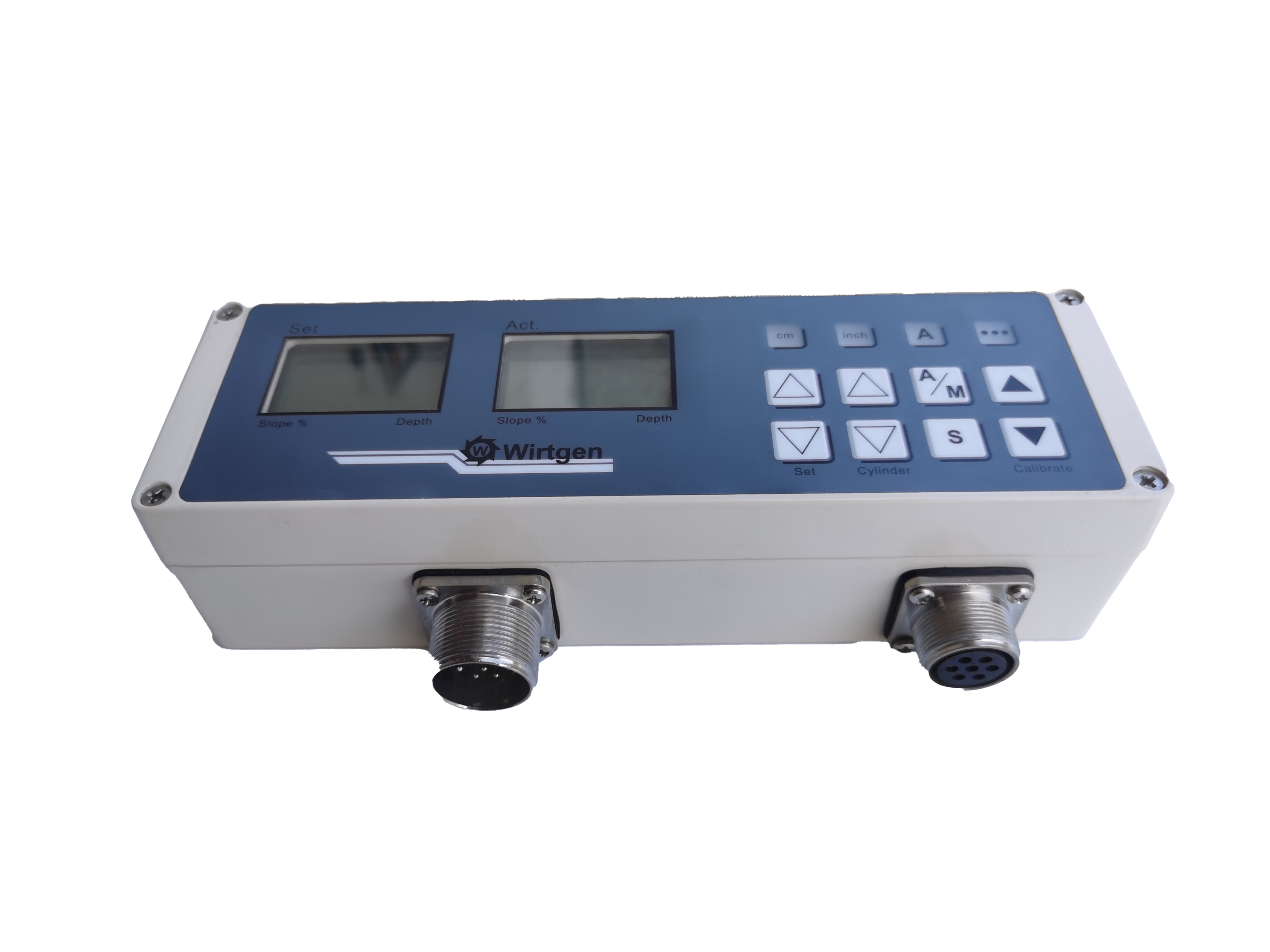

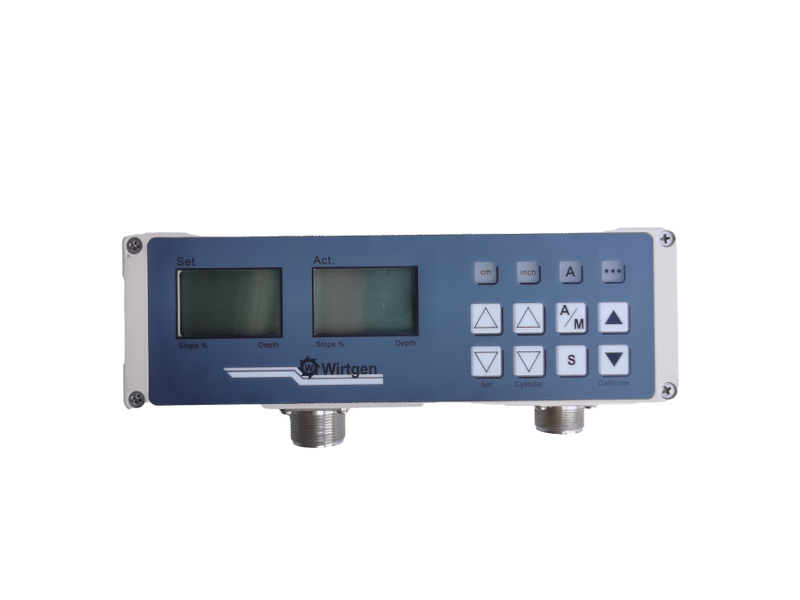

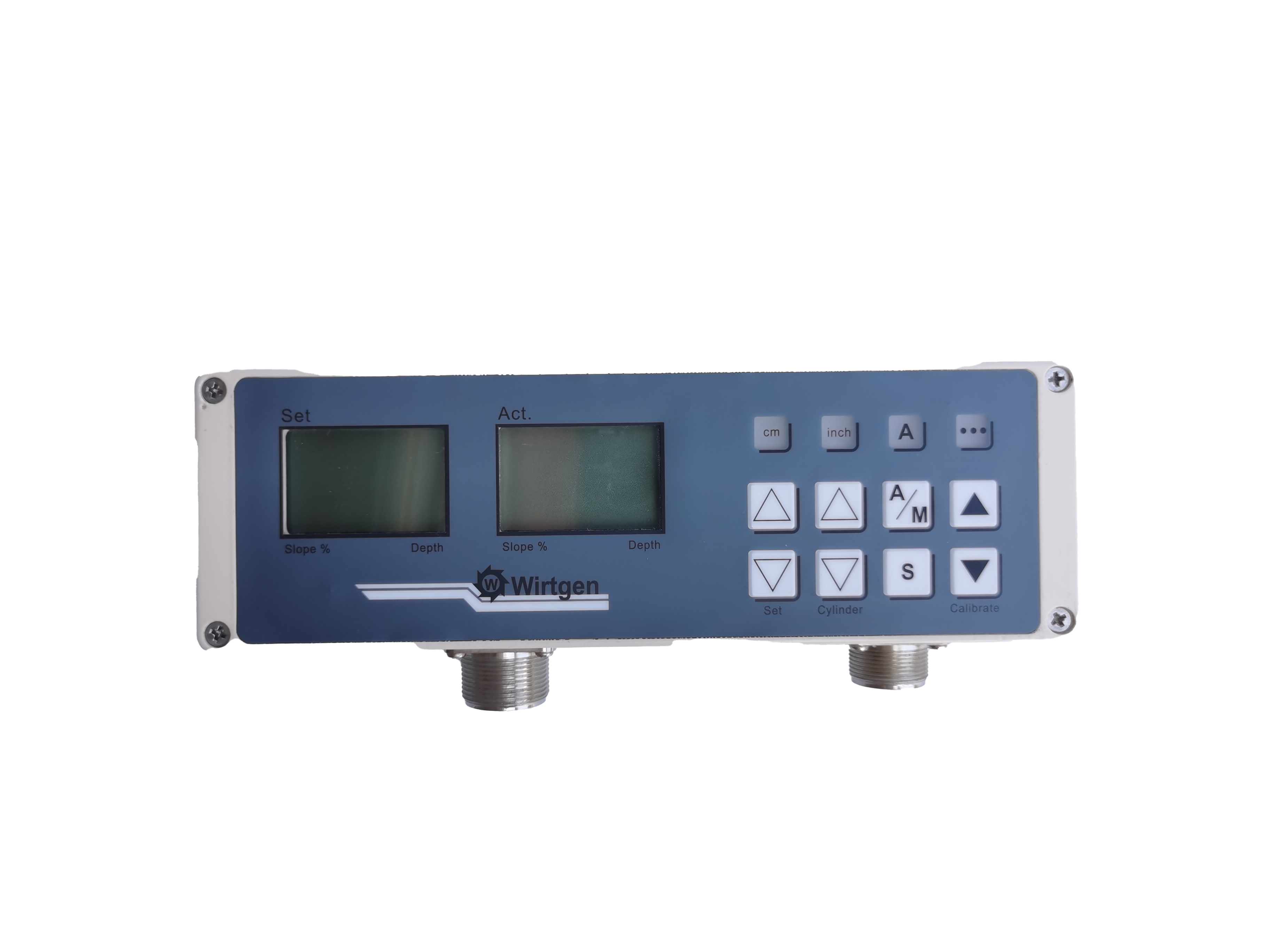

115640 Depth Sensor for Milling Machine W1900 Electric System

Wirtgen W1900 Milling Machine Depth Sensor 115640

The 115640 Depth Sensor is a crucial depth control component for the Wirtgen W1900 cold milling machine, used to monitor the difference between the milling drum height and the road surface reference surface in real time. This sensor works in conjunction with the machine's control system to achieve automatic leveling and precise milling depth control, ensuring both the quality and efficiency of road construction.

Functions and Features

• Milling Depth Monitoring: Real-time monitoring of milling depth changes improves construction accuracy.

• Automatic Leveling Control: Works with the LEVEL PRO system to maintain milling flatness.

• Durable & Protective Design: Dust-proof, waterproof, and shockproof, adaptable to various construction environments.

• Multiple Reference Methods Supported: Supports multiple leveling methods including wire, ultrasonic, and laser.

• Improved Construction Efficiency: Reduces manual adjustments, improving construction consistency and quality.

Applicable models

The Wirtgen W1900 cold milling machine is partially compatible with models such as W2000, W2100, and W2200.

Technical parameters

Installation & Usage Notes

• Ensure the sensor is properly aligned with the milling drum during installation to avoid measurement errors.

• Avoid heavy impacts and prolonged exposure to water to extend the sensor's service life.

• Regularly inspect cables and connectors to maintain stable signal transmission.

• Handle with care during maintenance or replacement to prevent damage.

• Follow the machine manufacturer’s guidelines for system calibration after sensor installation.

Additional Notes

In Wirtgen milling machine systems, the 115640 depth sensor typically works in conjunction with the following components:

1. Depth Controller

2. Slope Sensor

3. Ultrasonic Sensor

4. ECU Control Unit

5. Wire Harness System
