Road Milling Cutting Tool for Cat PM200

Introduction

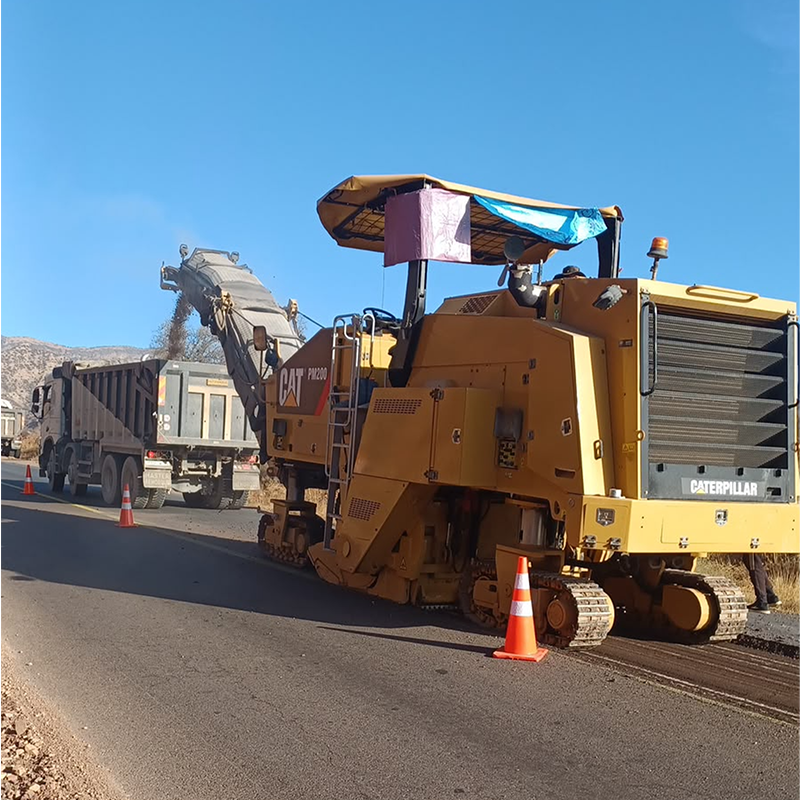

The Caterpillar PM200 half-lane cold planer is built to strip full-depth asphalt and concrete day after day, and the parts that take the hardest punishment are the tools mounted around its cutting rotor. A road milling cutting tool does more than bite into the pavement; it controls your rate of production, your finished surface texture, and ultimately your cost per ton of material removed. Getting the right teeth, holders and retainers on the PM200-2010 mm or 2235 mm rotor is one of the fastest ways to protect both uptime and a smooth pass.

If you are replacing worn tooling on a PM200, choosing the correct road milling cutting tool comes down to understanding three things: the material you are cutting, how the tools are arranged on the rotor, and the quality of the carbide and steel that go into each bit. This guide walks through all three so you can spec the right set the first time.

What makes up a road milling cutting tool

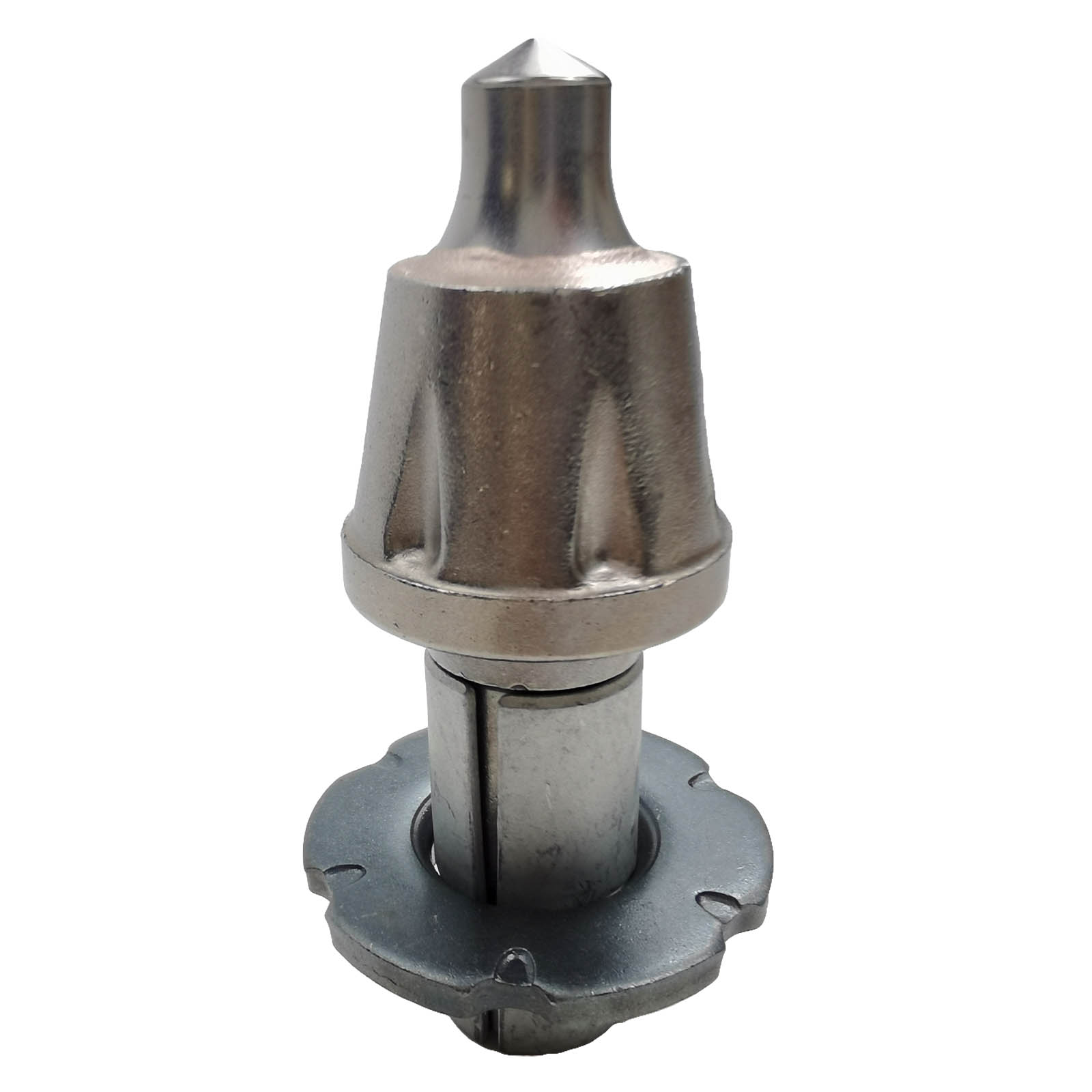

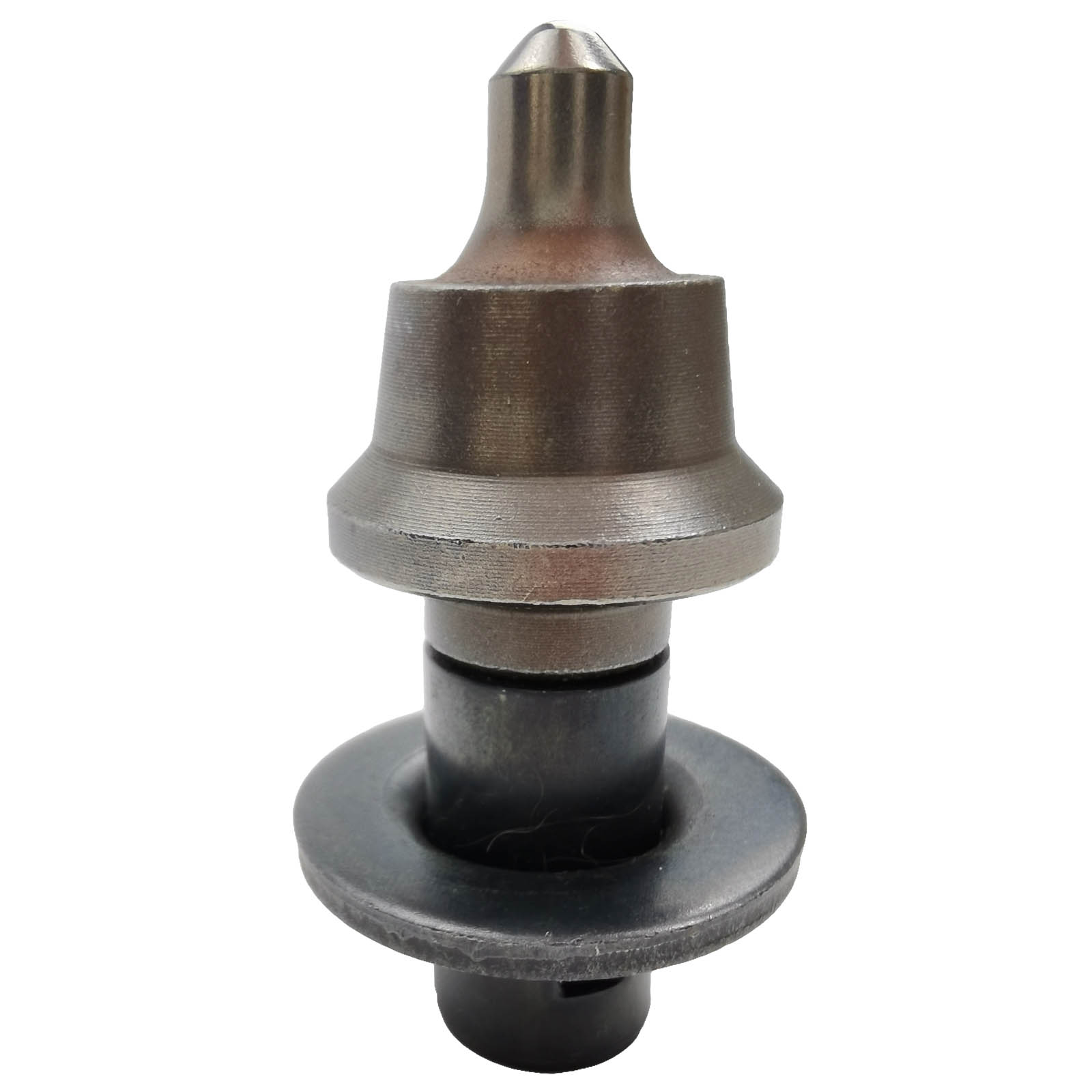

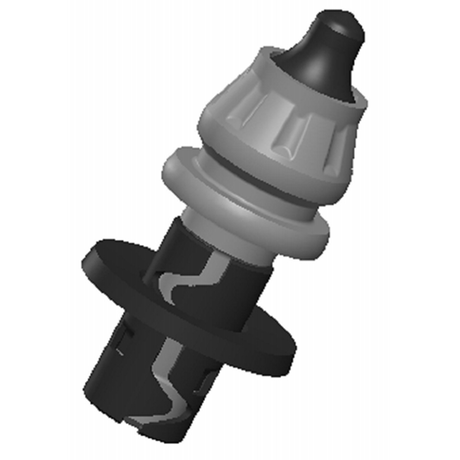

A typical cold planer tooth has three parts working together. The carbide tip is the hardened point that actually cuts the asphalt or concrete and absorbs most of the wear. Below it, the steel body holds the tip and keeps the tool rotating so the wear stays even around the shank. Around the shank you will usually find a washer and a spring retainer or o-ring that lock the tooth firmly into its holder. On the PM200, Caterpillar mounts these in quick-release conical holders, which means the tooth swaps out fast with a simple pry action rather than a long wrenching operation. That quick-change design matters, because it turns a full rotor change into a short maintenance window instead of a half day in the shop.

The quality of those three components sets one bit apart from another. Wear-resistant tungsten carbide tips keep their cutting edge longer and hold a sharp profile, while a well-formed body with relief channels lets cut material flow away instead of packing up against the shank. Premium milling teeth like the ones in the product range at Jestin Bits' road milling cutting tool category are designed exactly around this idea: a fluted body that supports rotation, an increased collar that shields the washer and holder, and a tip alloy matched to the job.

Match the tool to the material

The single most important decision is matching your tooth to the pavement you are removing, because a bit that suits the material cuts faster and lasts noticeably longer. For soft to medium asphalt, a lighter-duty bit with a sharper carbide tip gives a quick cut and low torque demand. On medium-hard or abrasive asphalt, step up to a tougher tip with heavier body geometry so the bit resists chipping and holds its gauge. For concrete, you need the hardest tip available, since concrete is full of abrasive aggregate that dulls softer carbide quickly. Choosing the correct tool for each application is exactly the sort of guidance Caterpillar gives its own operators, and it applies just the same to aftermarket milling teeth.

It is also worth matching the shank size and holder profile to the rotor. The PM200 accepts conical tools held in quick-release holders, and standard shank sizes used across cold planers run around 15 mm, 20 mm or 22 mm depending on the machine and the holder package. Fitting a tooth into a holder it was not designed for is the fastest way to burn both parts, since the tool no longer rotates freely and the contact point wears on one side. When you order, confirm your shank diameter and your holder system rather than assuming the machine model alone is enough.

How tools sit on the PM200 milling drum

How the teeth are spaced and angled on the rotor is just as important as the tooth itself. Caterpillar arranges the tools on the PM200 rotor in a chevron pattern, with the cutting bits laid out in a triple-wrap pattern that spreads the cutting force evenly and produces the strongest breakout force. This staggered arrangement lets each tooth take a bite in sequence instead of all slamming the pavement together, which keeps the machine running smooth and spares the holders and body from shock loads.

Because the pattern relies on every tool staying in position, a missing or heavily worn tooth disrupts the whole rotor. The tools nearest the gap suddenly carry extra load, wear down faster, and leave a rough, uneven surface on the road. For this reason, operators keep a matched spare set on hand and check the rotor for broken or missing teeth before every shift. If your current supplier makes you wait weeks for a small run of teeth, it is worth keeping a stock of compatible replacement cutting tools from a single source.

Holders and retainers work as a set

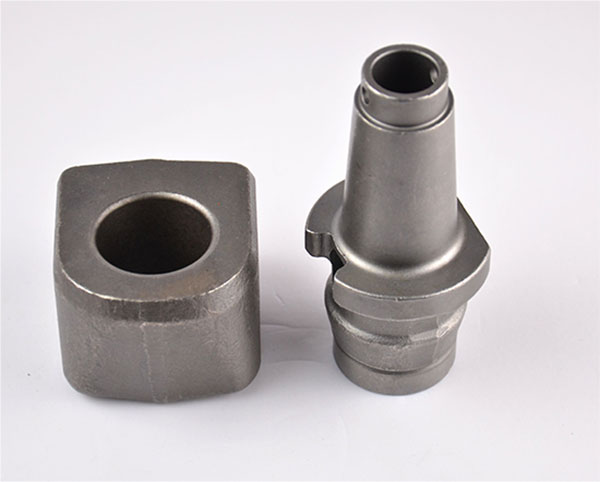

The tooth is only one half of the equation; the holder and retainer do the other half of the work. The holder base welds or bolts to the rotor drum and carries the full cutting load, while the retainer holds the tooth in place and lets it spin. On a PM200, hardened quick-release conical holder

Final Thoughts

Choosing the right toolholder for your milling machine comes down to three things:

1. Fit — make sure the bore size (20 mm, 22 mm, or 25 mm) matches your picks

2. Quality — look for proper material, heat treatment, and precision machining

3. Value — quality toolholders cost more upfront but save money in the long run through longer life and less downtime

Whether you need JST22-20, JST11-20, or compatible toolholders for SANY, XCMG, or other machine brands, we stock a full range of high-quality replacement options.

Need help finding the right toolholder for your machine? Contact us with your machine model and pick size, and we'll help you find the perfect match.
