When a milling machine goes down, everyone looks at the drum. The picks. The holders. The big steel stuff.
But here’s what we see in the field: a lot of unplanned stops come from the conveyor system. And within that system, the parts that fail quietly — without drama, without warning — are the plastic and polyurethane components .
They don’t break in half. They don’t make a loud noise. They just stop doing their job. A roller stops spinning. A guide wears thin. And suddenly the belt won’t track straight, or material starts spilling, or the belt itself starts wearing at double the rate.
So let’s give these parts the attention they deserve.
On a milling machine conveyor, the non-metal components that take real abuse are:
Support Rollers (Polyurethane)
These sit under the belt and carry the weight of the milled material. Wirtgen uses “special polyurethane compound” for its underbelt rollers, and the reason is simple: polyurethane handles abrasion better than standard rubber in this application .

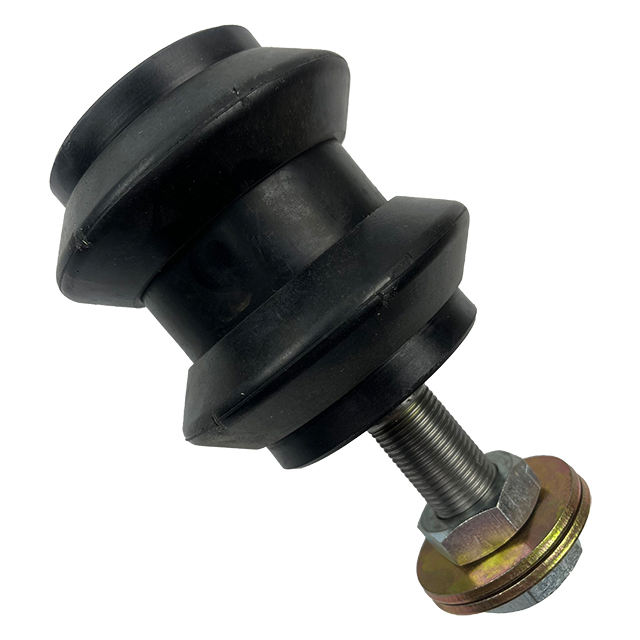

Guide Rollers
They keep the belt centered. Without them, the belt wanders, rubs against the frame, and tears at the edges. Good guide rollers are made from low-friction materials, but they still wear over time .

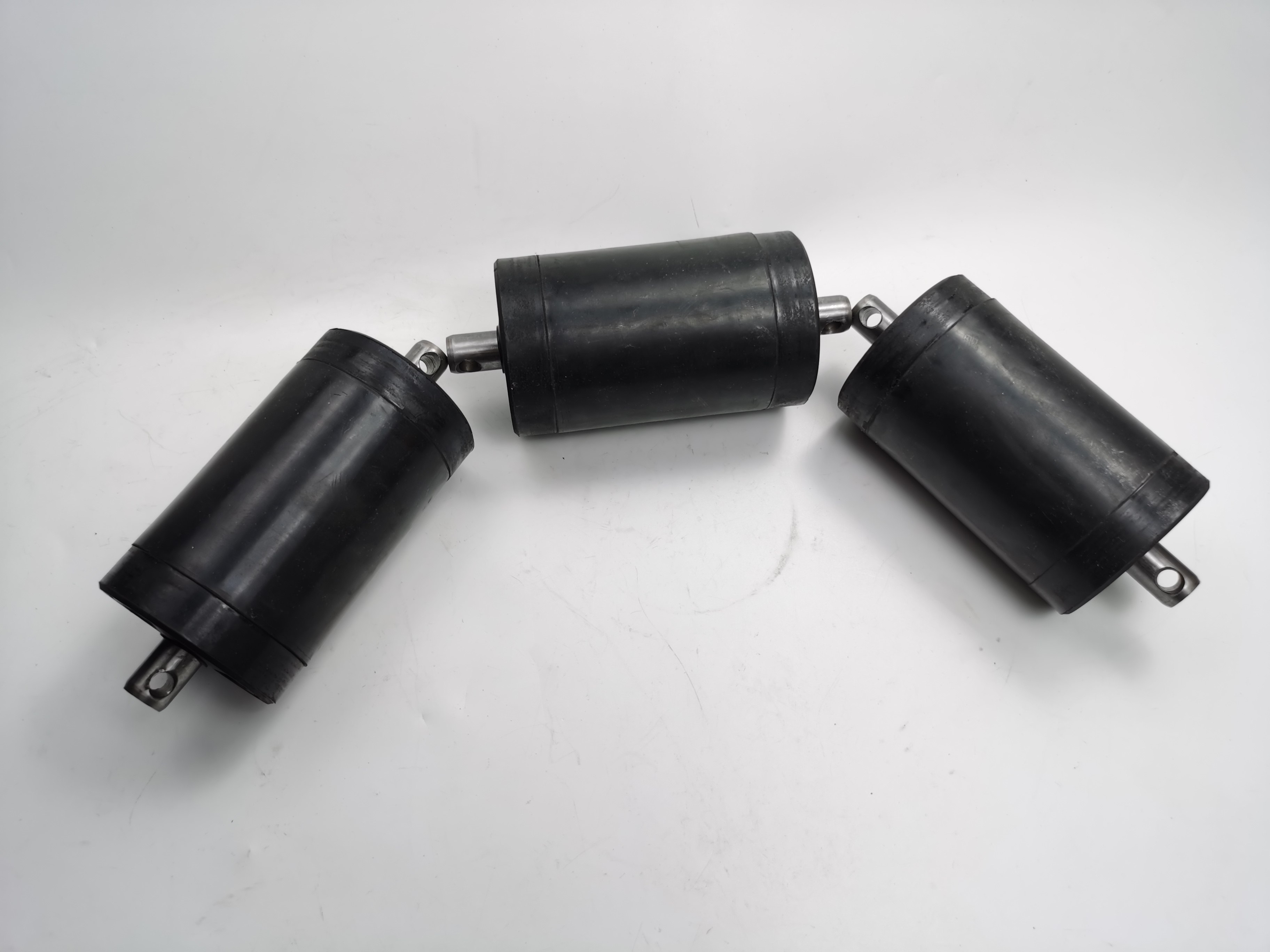

Garland Roller Connecting Elements
The links between garland rollers are heat-treated and designed to move freely. But they still get packed with fines and asphalt residue, and eventually they seize or wear .
Chain Slide Bars (Polyamide/Plastic)
If you’ve read our undercarriage article, you know these. They’re made from self-lubricating polyamide and sit between the track chain and the frame. They’re cheap. They wear. And when they’re gone, the chain starts eating the frame .
Three reasons.
1. They’re exposed to everything. Milled material is abrasive. Dust mixes with moisture and turns into grinding paste. The rollers and guides sit right in the middle of it.
2. They’re often ignored during maintenance. People check the belt tension. They check the drum. Nobody crawls under the conveyor to spin a support roller and see if it’s still turning freely.
3. Cheap replacements fail fast. A low-grade polyurethane roller might feel fine in your hand. But after a few hundred hours of abrasive material, it goes flat, seizes, or wears through.
Part | Failure Mode | What Happens Next |
|---|---|---|
Polyurethane support roller | Seizes or wears flat | Belt drags, wears faster, may track off |
Guide roller | Wears thin or breaks | Belt misaligns, edges fray, material spills |
Garland connecting elements | Seize from fines buildup | Rollers stop turning, belt drags |
Chain slide bar | Wears through completely | Chain contacts frame, expensive damage |
Here’s the thing about these failures: they’re cheap parts that cause expensive problems. A seized roller doesn’t just cost you the roller. It costs you belt life, downtime, and possibly a damaged frame.
If you run milling machines regularly, here’s what we’d recommend stocking. Not a warehouse full. Just the stuff that stops a shift.
Priority 1 — Small, cheap, high-impact:
Polyurethane support rollers (at least 2-3 pieces)
Chain slide bars (they’re cheap — stock a set)
Guide rollers (one or two)
Priority 2 — Know your lead time:
Full set of garland rollers (expensive, but good to know availability)
Complete belt (if yours is aging, have a plan before it tears)
What NOT to stock: Don’t buy a full set of every roller for every machine. Match your stock to your actual machines. One or two critical spares per machine is smarter than a shelf full of parts that fit nothing you own.
Next time your operator does a walk-around, add this:
Spin every accessible roller by hand. If it doesn’t spin freely, it’s failing. Replace it before it seizes and takes the belt with it.
It takes two minutes. It saves hours.
Polyurethane is not just “plastic.” The grade matters. Cheap polyurethane wears fast, deforms under load, and doesn’t handle heat well. Good polyurethane — the kind used in industrial conveyor rollers — holds its shape, resists abrasion, and actually lasts .
At Suzhou Jestin Machinery Technology Co., Ltd. , we supply conveyor wear parts that use proper material grades. We’re not the cheapest. But we’re the option that doesn’t have you replacing the same roller three times a season.
The plastic and polyurethane parts on your milling machine don’t get attention. They don’t look important. But they’re the difference between a conveyor that runs smoothly and a conveyor that eats belts and stops jobs.
Know what they are. Keep the cheap ones on the shelf. And check them before they check out.
Need conveyor wear parts for your milling machine? We can help.
Q1: How do I know if a support roller is polyurethane or just cheap rubber?
A: Look at the wear pattern. Polyurethane tends to wear smoothly and holds its shape longer. Cheap rubber goes sticky, cracks, or deforms. Also, check the specs from your supplier — if they can’t tell you the material, it’s probably not the good stuff.
Q2: Can I replace just one support roller, or should I do the whole set?
A: You can replace one. But if one is worn flat, the others nearby are probably close behind. On high-hour machines, doing a full set saves you from crawling under again next month.
Q3: Why does my conveyor belt keep tracking off to one side?
A: Check the guide rollers first. If they’re worn or seized, the belt wanders. Also check for uneven material loading and belt tension. Worn guide rollers are the most common cause we see.
Q4: Are chain slide bars really necessary? They’re just plastic.
A: Yes, they’re necessary. They’re cheap, they’re sacrificial, and they protect the frame. If you skip them, the chain wears into the frame — and that’s a repair that costs ten times what the slide bars cost.
Q5: How often should I check conveyor rollers?
A: Daily walk-around: spin the easy-to-reach ones. Weekly: get under and check the rest. Replace any that don’t spin freely or feel rough.
Q6: Do you supply conveyor parts for non-Wirtgen machines?
A: We cover most major milling machine brands. Send us your machine model and the part you need, and we’ll match it.
Q7: What’s the typical lifespan of a polyurethane roller?
A: Depends on material abrasiveness and belt tension. In normal milling conditions, 1500-2500 hours is realistic for a quality roller. Cheap ones fail much sooner.
Q8: Can I use aftermarket conveyor belts with OEM rollers?
A: Usually yes, as long as the belt dimensions and thickness match the roller spacing. But mixing very different quality levels can cause uneven wear. We can help you match components.
