Premature tool failure drains highway construction budgets rapidly. Minor inefficiencies in the cutting process scale into heavy losses involving wasted fuel, excess labor, and unplanned machine downtime. Procurement teams often focus solely on the upfront price of individual cutting tools. They ignore the mechanical relationship between the pick, the holder, and the drum. Mismatched components cause uneven wear and severe holder damage. This leads to drum failure when operators attempt to fix common surface defects like deep cracks, rutting, and potholes.
Optimizing pavement milling requires a strict systems-based approach. The entire cutting assembly must work in harmony to maintain advance rates and achieve the required surface texture. This guide provides a technical evaluation framework for selecting, matching, and maintaining your drum tooling based on workpiece material properties and desired surface finishes.
The operational lifespan of road milling picks is dictated as much by the precision fit of the milling pick holder as by the tungsten carbide grade of the tip.
Selecting the correct carbide insert geometry (chisel vs. cap) and grade toughness must align strictly with the aggregate abrasiveness and depth of cut (asphalt vs. concrete).
Quick-change tool holder systems reduce replacement downtime by up to 70% but require stringent maintenance of the base block and wear sleeves to prevent shank deformation.
Successful pavement removal establishes a strict baseline for field performance. Operators must maintain a consistent cutting depth across the entire width of the cut. The machine needs an optimal advance speed to keep the paving train moving and the project on schedule. Uniform tool rotation is non-negotiable for even wear. Finally, the machine must achieve the required surface finish accuracy to prepare the substrate for new overlays. Achieving these metrics relies entirely on the mechanical interface between the cutting tools and the drum.
The physics of a cutting strike involve massive energy transfer. Kinetic energy moves from the heavy rotating drum, travels through the holder, enters the pick, and finally shatters the pavement. This process repeats thousands of times per minute. The tool holder acts as the primary shock absorber in this violent environment. It must handle extreme compressive forces while resisting lateral deflection.
A properly matched milling pick holder absorbs lateral forces generated when the pick hits hard aggregate, buried iron, or uneven surfaces. It maintains the optimal attack angle for the cutting tool. If the attack angle deviates by even a few degrees, the carbide tip drags instead of penetrating. Dragging generates excessive friction and heat, which destroys the braze joint holding the carbide insert. Maintaining the correct angle ensures the accuracy of the milled surface and extends the life of the entire drum assembly.
The lacing pattern on the drum also dictates how stress is distributed across the holders. A standard milling drum features a specific wrap pattern designed to pull the cut material toward the center of the housing for extraction. If a single holder is out of alignment due to wear or improper welding, it disrupts this material flow. The disrupted flow forces the surrounding tools to work harder, accelerating their wear rates and increasing the load on the machine's engine.
Improper seating creates an immediate failure cascade on the job site. When a shank fits too loosely inside the bore, the tool rattles during operation. This loose fit prevents the pick from rotating naturally. Without rotation, the abrasive asphalt grinds against one side of the steel body, creating a flat spot. Once a flat spot forms, the tool will never rotate again. The carbide tip will wear unevenly, and the tool will lose its cutting edge rapidly.
Conversely, if the fit is too tight, the shank binds inside the bore. The immense lateral forces have nowhere to dissipate, causing the steel shank to shear off completely. When a shank shears, the base block is left exposed to the abrasive milling environment.
Secondary damage to the drum structure represents a massive operational risk. When holders become compromised, they expose the permanent base blocks and the drum skin to direct abrasive wear. Repairing this damage requires extensive downtime. Drum re-welding, re-machining bores, and dynamic balancing consume days of labor in the shop. Utilizing properly matched road milling machine parts prevents this destructive cascade and keeps the machine cutting efficiently.
Understanding the anatomy of a cutting tool allows procurement teams to make informed decisions. Specific manufacturing specifications translate directly to field performance. You must evaluate the carbide insert, the steel body, and the retention system as a cohesive unit rather than isolated parts.
Carbide grade toughness must map directly to aggregate abrasiveness. Manufacturers adjust the cobalt-to-tungsten ratio to alter the physical properties of the insert. Cobalt acts as the binder that holds the tungsten carbide grains together. Higher cobalt content increases impact resistance. This makes the tool tougher and less likely to shatter when striking hard aggregates, concrete, or buried utility covers. Lower cobalt content increases wear resistance. This makes the tool harder, which is ideal for highly abrasive materials like sandstone or high-silica asphalt.
Geometry selection dictates penetration efficiency. You must choose the right tip shape for the specific job site conditions.

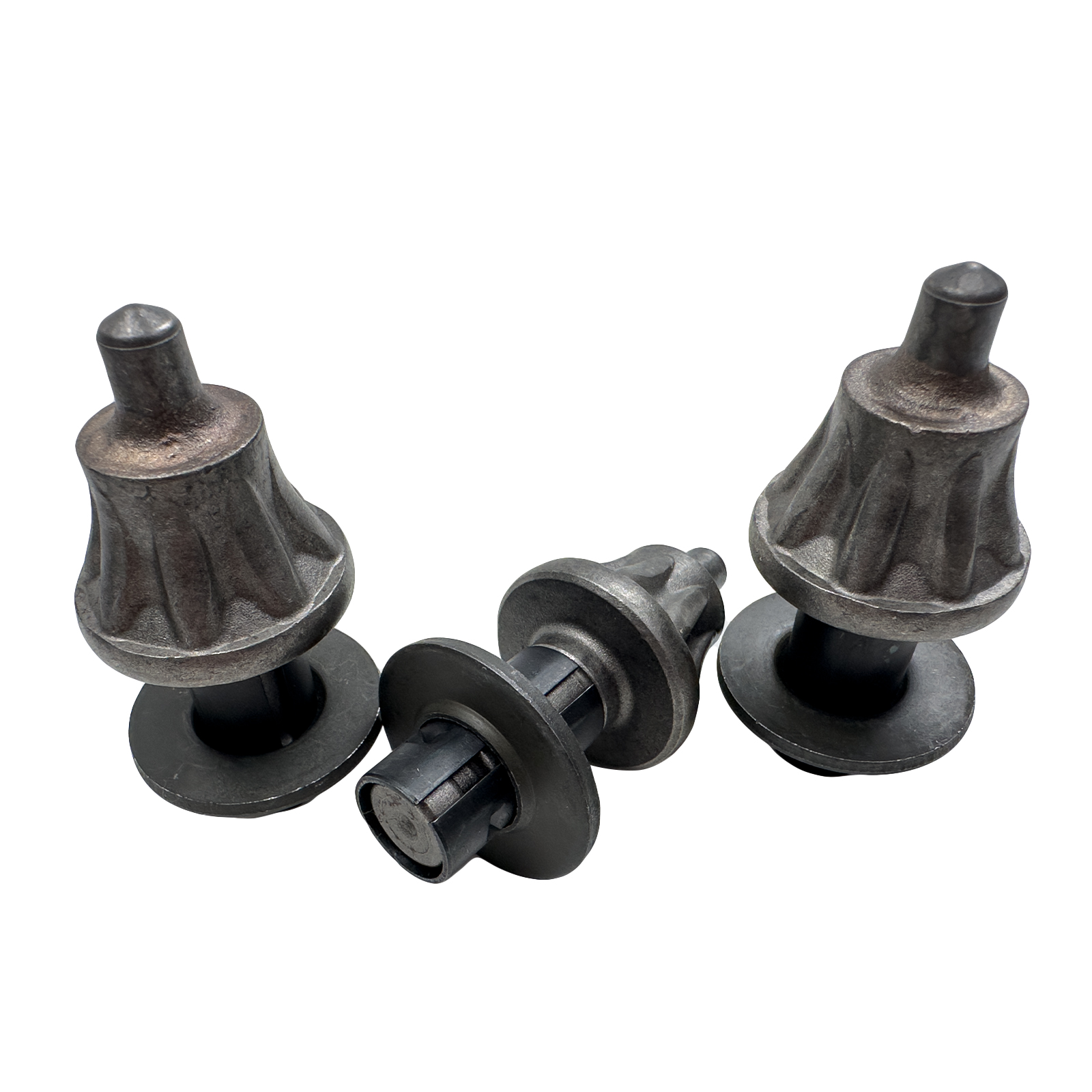

Cap Shapes: Provide maximum high-impact protection. The wider profile shields the steel body in hard materials and prevents the carbide from fracturing under heavy shock loads.
Chisel Shapes: Deliver high penetration rates. The narrow profile cuts efficiently through standard asphalt mixes, reducing rolling resistance and fuel consumption.
Pointed Shapes: Offer extreme precision. Used primarily for fine-milling applications requiring a smooth finish and minimal substrate disturbance.
Carbide Geometry | Cobalt Ratio | Primary Application | Impact Resistance | Wear Resistance |
|---|---|---|---|---|
Standard Chisel | Medium (6-8%) | Standard Asphalt Milling | Medium | High |
Heavy-Duty Cap | High (9-11%) | Concrete / Deep Stabilization | Very High | Medium |
Narrow Point | Low (5-6%) | Fine Milling / Profiling | Low | Very High |
The steel body requires specific metallurgical properties. Manufacturers use heat-treated alloy steel to withstand constant abrasion from the milled material and the water spray system. If the steel is too soft, it suffers from a condition known as "washout." Washout occurs when the abrasive asphalt slurry wears away the steel directly beneath the carbide insert, creating an hourglass shape. Once the steel support vanishes, the carbide tip snaps off under pressure, rendering the road milling picks useless.
The braze joint quality between the carbide insert and the steel body is equally critical. High-quality tools utilize specialized silver or copper brazing alloys applied via induction heating. A strong braze joint absorbs the differing thermal expansion rates between the carbide and the steel. This prevents premature tip loss during heavy, high-heat cutting operations. If the braze joint is weak, the carbide tip will simply fall out of the pocket long before the tool is actually worn out.
Contractors must verify shank dimensions before ordering. Standard shank diameters include 20mm, 22mm, and 25mm. You must verify the load-bearing capacities of these shanks against your machine's horsepower and drum design. A high-horsepower machine pushing a 20mm shank through hard concrete will snap the tools instantly. Always match the shank diameter to the drum's engineered specifications.
Retention mechanisms ensure continuous tool rotation while preventing pull-out. Different systems offer varying levels of tension and debris protection.
Friction Rings: Provide consistent tension for standard milling environments. They allow for easy installation and removal while maintaining enough grip to ensure rotation.
Twin-Stop Clips: Offer superior holding power for heavy-duty applications. These clips lock into the holder bore securely, preventing the tool from pulling out when snagging on rebar or heavy aggregate.
Tension Sleeves: Deliver maximum surface area contact inside the bore. This design prevents fine dust and water from entering the holder, which keeps the bore clean and promotes free rotation over a longer lifespan.
Matching tooling to the specific job site environment guarantees optimal results. Different materials require different cutting strategies. You must categorize your solutions based on the workpiece material, the depth of the cut, and the desired surface finish.
Standard asphalt removal focuses on penetration speed and fuel efficiency. Operators need to fix common surface defects like potholes, rutting, and alligator cracking quickly. The process must also produce a consistent gradation of Reclaimed Asphalt Pavement (RAP) for recycling plants. Inconsistent RAP sizing forces recycling plants to crush the material again, wasting time and energy.
For these environments, utilize standard chisel-shaped road milling teeth. Pair them with a medium-grade carbide insert. Standard wear plates on the steel body provide adequate protection against normal asphalt abrasion. This configuration balances cutting speed with tool longevity, keeping advance rates high and fuel consumption low. The chisel shape penetrates the asphalt cleanly, producing a uniform RAP size that asphalt plants prefer.
Concrete removal and deep soil stabilization present extreme challenges for the ground crew. The primary focus shifts entirely to impact resistance. Operators must prevent catastrophic insert fracture when the drum hits rebar, utility covers, or high-PSI concrete. Penetration speed becomes secondary to tool survival.
Deploy heavy-duty carbide milling picks for these brutal applications. Look for cap-shaped or reinforced carbide inserts with high cobalt content. The steel bodies must be wider to protect the holder block from abrasive concrete dust. Utilize heavy-duty retention clips to ensure the tools do not pull out when snagging on steel reinforcement grids. Expect a slower advance rate, but the robust tooling will survive the heavy shock loads without shearing.
Fine milling focuses entirely on cutting accuracy. The goal is to achieve a specific micro-milled texture for thin overlays or micro-surfacing. Operators must minimize micro-cracking in the underlying substrate. A rough cut compromises the bond between the old pavement and the new emulsion layer, leading to premature delamination.
Select narrow-profile tools with sharp, highly wear-resistant carbide tips. These tools are spaced tightly on a specialized fine-milling drum, often with a line spacing of 6mm or 8mm compared to the standard 15mm. The tight spacing and sharp tips create a dense, uniform pattern on the pavement surface. This texture provides maximum grip and bonding area for the new asphalt emulsion while leaving the underlying base structure completely intact.
Evaluating the infrastructure that holds the picks ensures long-term drum viability. The holder ecosystem dictates how efficiently you can maintain the machine in the field. A poorly designed holder system guarantees excessive downtime and frustrated mechanics.
Operational agility depends heavily on the holder design. Quick-change systems offer massive advantages over traditional weld-on blocks. A quick-change system features a permanent base block welded to the drum and a replaceable upper tool holder. When the bore wears out, mechanics simply unbolt or tap out the upper holder and insert a new one. This process takes minutes per block and can be done directly on the job site.
Traditional weld-on blocks require a torch, a grinder, and a skilled welder. Mechanics must cut the old block off the drum, grind the surface flat, pre-heat the drum, and weld a new block precisely into place using specific jigs to maintain the attack angle. This process takes hours. While quick-change systems require a higher initial investment, they drastically reduce labor costs during field replacements. They keep the machine cutting instead of sitting in the maintenance yard.
The wear sleeve functions as a sacrificial barrier in many modern holder designs. It protects the permanent base block from abrasive wear. It also acts as the interface for pneumatic extraction tools. When the sleeve wears down, it compromises the seating of the cutting tool. You must monitor the condition of these sleeves constantly.
Inspect holder bores rigorously during maintenance intervals. Measure the internal diameter for ovalization using a go/no-go gauge. An oval bore cannot hold the shank tightly, leading to immediate tool failure. Verify all dimensional tolerances. Determine exactly when to replace the upper part of a two-piece holder system. Proactive maintenance of your milling drum tooling prevents catastrophic damage to the permanent base blocks.
Wear Indicator | Root Cause | Required Action |
|---|---|---|
Ovalized Bore | Operating with worn shanks or excessive lateral force | Replace upper tool holder immediately |
Worn Extraction Groove | Abrasive material flow over the holder body | Monitor closely; replace if extraction tool cannot grip |
Cracked Base Weld | Heavy impact strikes or improper initial welding | Grind out old weld and re-weld to OEM specifications |
Purchasing high-quality tools means nothing without proper field implementation. Actionable maintenance steps ensure the tooling performs exactly as expected after installation. You must establish strict protocols for your ground crew to follow at the end of every shift.
Daily visual inspections prevent minor issues from becoming major failures. The ground crew must inspect the drum at the end of every shift while the machine is being washed down. They need to identify specific wear patterns that indicate underlying mechanical problems.
Identify Flat Spots: Look for tools worn heavily on one side. This indicates a complete lack of rotation. The tool must be removed and the bore inspected.
Check Free Rotation: Manually spin random tools across the drum. They should turn with moderate resistance. If they are locked solid, the bore is jammed with debris or the shank is bent.
Monitor Wear Indicators: Check the wear indicator grooves machined into the steel body. Once the steel wears down to these marks, replace the tool immediately to prevent bore damage.
Inspect Retainer Clips: Ensure the clips are fully seated inside the bore. Protruding clips indicate improper installation and will lead to tool pull-out.
Improper extraction techniques destroy holder bores faster than milling hard concrete. Ground crews often use heavy manual slide hammers or sledgehammers to drive stubborn tools out of the block. Striking the holder block with a sledgehammer warps the bore, mushrooms the steel, and damages the base block welds. You must use proper pneumatic or hydraulic extraction tools. These devices apply smooth, consistent force to eject the tool without damaging the surrounding infrastructure.
Outline a strict protocol for cleaning the holder bore before inserting a new pick.
Extract the worn tool using a pneumatic punch.
Spray the empty bore with a penetrating cleaning solvent.
Use a cylindrical wire brush attached to a drill to remove compacted asphalt dust and rust.
Blow out the remaining debris with compressed air.
Insert the new tool, ensuring the retainer clip compresses smoothly into the bore.
A clean bore ensures proper seating, allows free rotation, and maintains the correct alignment of the new cutting tool.
Efficient pavement milling and optimal surface finishes remain impossible without a perfectly matched pick-and-holder system. You must tailor your tooling selection directly to the specific aggregate and workpiece material you intend to cut. Ignoring the mechanical relationship between these components guarantees accelerated wear, poor machine performance, and excessive downtime.
Take immediate action to optimize your milling operations:
Audit your current scrap pile of used teeth to identify recurring wear patterns, specifically looking for flat-spotting that indicates a lack of rotation.
Measure your current holder bores with a go/no-go gauge to identify ovalization before installing a new set of teeth.
Request a comprehensive tooling consultation to match your carbide grades to the specific geology of your upcoming projects.
Implement a mandatory daily bore cleaning protocol for your ground crew using proper pneumatic extraction equipment.
A: Asphalt teeth typically feature chisel-shaped carbide inserts designed for high penetration rates and speed. Concrete teeth use cap-shaped or heavily reinforced carbide inserts with higher impact resistance to survive strikes against rebar and high-PSI materials without fracturing.
A: Highly abrasive aggregates require carbide inserts with lower cobalt content, which increases hardness and wear resistance. Hard, impact-heavy aggregates require higher cobalt content, which increases toughness and prevents the carbide tip from shattering upon impact.
A: Replacement intervals depend entirely on bore wear. You must replace the holder when the internal bore shows signs of ovalization or when it exceeds the manufacturer's dimensional tolerances. Operating with an oval bore prevents tool rotation and causes shank shear.
A: Uneven wear, or flat-spotting, occurs when the tool fails to rotate inside the holder. This is usually caused by compacted asphalt dust jamming the bore, a bent retainer clip, or a damaged, ovalized holder block that binds the shank.
A: Yes, provided the aftermarket parts meet exact dimensional tolerances. You must verify that the shank diameter, retention system, and attack angle match the OEM specifications perfectly to prevent holder damage and ensure efficient cutting performance.
A: Tip loss usually results from braze joint failure. This occurs when excessive heat builds up due to a lack of tool rotation, or when the steel body suffers from washout, removing the physical support beneath the carbide insert.
A: Shank size must match the drum's engineered holder bores. It also correlates with machine horsepower. High-horsepower machines require thicker shanks (e.g., 22mm or 25mm) to withstand the massive shear forces generated during heavy cuts.
