Product Introduction:

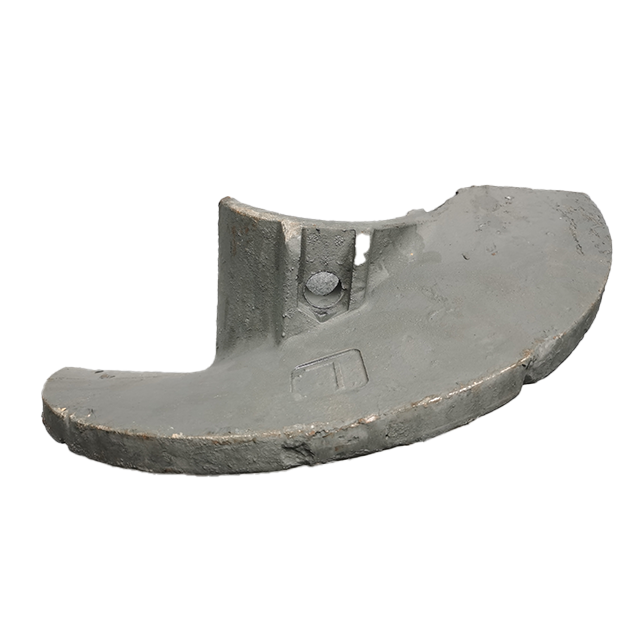

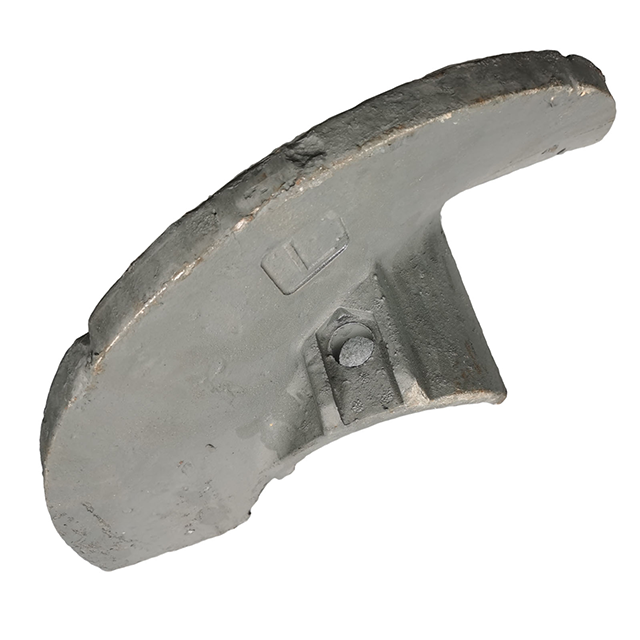

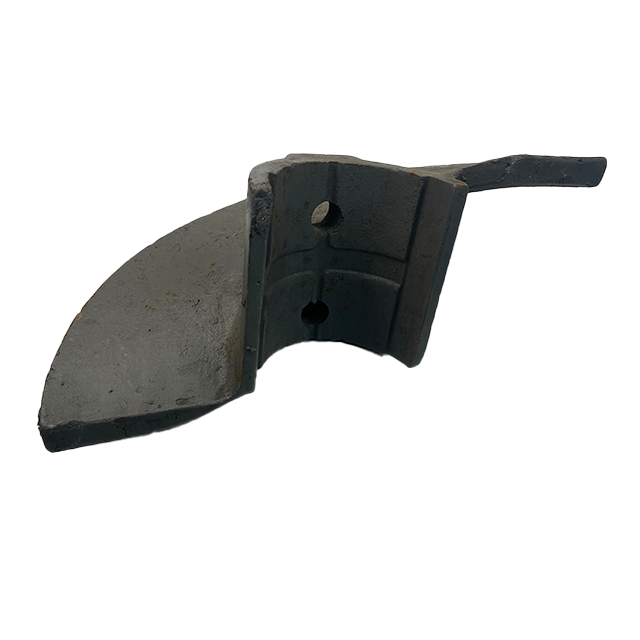

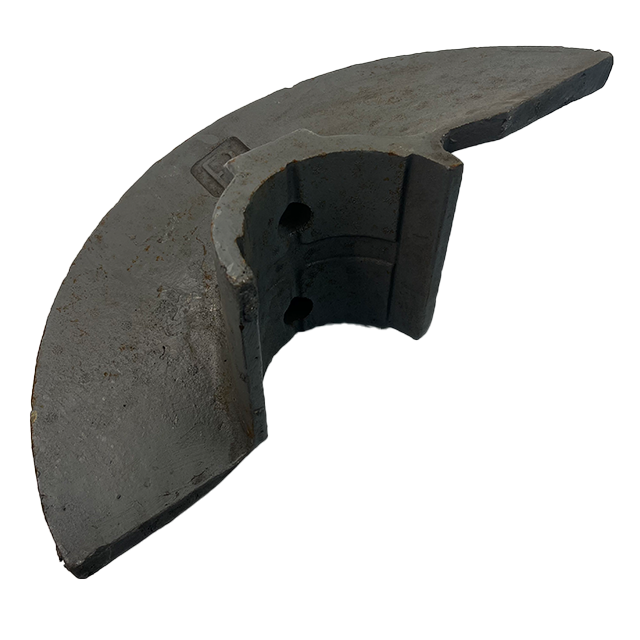

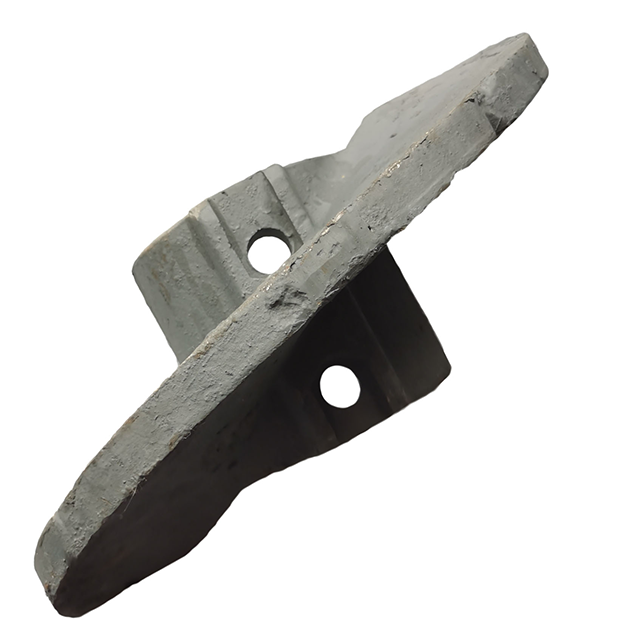

The 4606302115 auger blade is an component for S1800-2 and Super1600-2. It is designed to optimize material transition and distribution during paving. The blade is made of a high-strength, wear-resistant alloy material, ensuring stable performance under high loads for extended periods and effectively reducing segregation and jointing problems on paved surfaces. Its precise structural design meets the mechanical specifications of S1800-2, ensuring easy installation and smooth operation, and is suitable for a wide range of paving materials, such as asphalt and modified asphalt.Its core functions are as follows. The uniform fabric is composed of a single, consistent material. It is essential to optimize material flow, reduce segregation during the paving process, and ensure the road surface is smooth and dense. Secondly, it is both wear-resistant and durable. The company has adopted a special heat treatment process to enhance wear resistance, prolong service life, and reduce replacement frequency. The product provides a seamless connection. When used with the S1800-2 spiral fabric system, it facilitates a smoother transition between the old and new material layers, reducing the visibility of joints. Fourth, the replacement process is quick. The modular design facilitates disassembly and maintenance, thereby reducing downtime and enhancing construction efficiency.This product is ideal for use in a variety of settings, including highways, city main roads, airport runways, and other projects that demand high paving uniformity. It is particularly well-suited for continuous, large-width paving operations.
Why does the spiral design exhibit exceptional resistance in extreme environments?
The spiral structure evenly distributes mechanical forces. As materials pass through, pressure is gradually transferred along the helical curve, preventing localized stress concentration and thereby minimizing risks of deformation or fracture. This design proves particularly effective for handling dense or viscous materials, maintaining stability even under heavy loads or impact conditions.
The self-cleaning property of spiral blades prevents clogging in harsh environments. Materials naturally roll during conveyance, reducing residue accumulation—making it ideal for damp, corrosive, or impurity-laden conditions. Even during prolonged operation, material adhesion rarely compromises efficiency.
The continuous operation mode of spiral designs reduces mechanical vibration and wear. Compared to segmented structures, its smoother operation diminishes fatigue damage caused by frequent starts/stops or impacts, extending service life.
The multi-angle adaptability of spiral blades accommodates complex terrains and temperature fluctuations. Whether in extreme cold, heat, or humidity, the spiral structure maintains stable performance by facilitating smooth material flow, mitigating friction-induced heat or cold brittleness.
Product operate guide:
① Removing old blades:
1.Loosen the fixing bolts .
2.Tap the root of the blade with a pry bar to release the mechanical bite with the screw fabricator.
② New Blade Positioning
1.Direct the curved guide surface of the blades towards the direction of rotation of the spiral fabricator.
2.Align the mounting holes to ensure that there is no gap on the contact surface with the transition plate.
③ Fastening and Calibration
1.Tighten bolts in stages.
2.Check the parallelism between the end of the blade and the leading edge of the screed .
Product Parameters
Part Name | Auger Blade |
Machine | Asphalt paver |
Material | Steel |
Color | Silver |
Part Number | 4606302115 |
Blades dia | 400mm |
Center distance | 80*80mm |
Weight | About 10.3 kg/pcs |
MNQ | 1pcs |
Product Introduction:
The 4606302115 auger blade is an component for S1800-2 and Super1600-2. It is designed to optimize material transition and distribution during paving. The blade is made of a high-strength, wear-resistant alloy material, ensuring stable performance under high loads for extended periods and effectively reducing segregation and jointing problems on paved surfaces. Its precise structural design meets the mechanical specifications of S1800-2, ensuring easy installation and smooth operation, and is suitable for a wide range of paving materials, such as asphalt and modified asphalt.Its core functions are as follows. The uniform fabric is composed of a single, consistent material. It is essential to optimize material flow, reduce segregation during the paving process, and ensure the road surface is smooth and dense. Secondly, it is both wear-resistant and durable. The company has adopted a special heat treatment process to enhance wear resistance, prolong service life, and reduce replacement frequency. The product provides a seamless connection. When used with the S1800-2 spiral fabric system, it facilitates a smoother transition between the old and new material layers, reducing the visibility of joints. Fourth, the replacement process is quick. The modular design facilitates disassembly and maintenance, thereby reducing downtime and enhancing construction efficiency.This product is ideal for use in a variety of settings, including highways, city main roads, airport runways, and other projects that demand high paving uniformity. It is particularly well-suited for continuous, large-width paving operations.
Why does the spiral design exhibit exceptional resistance in extreme environments?
The spiral structure evenly distributes mechanical forces. As materials pass through, pressure is gradually transferred along the helical curve, preventing localized stress concentration and thereby minimizing risks of deformation or fracture. This design proves particularly effective for handling dense or viscous materials, maintaining stability even under heavy loads or impact conditions.
The self-cleaning property of spiral blades prevents clogging in harsh environments. Materials naturally roll during conveyance, reducing residue accumulation—making it ideal for damp, corrosive, or impurity-laden conditions. Even during prolonged operation, material adhesion rarely compromises efficiency.
The continuous operation mode of spiral designs reduces mechanical vibration and wear. Compared to segmented structures, its smoother operation diminishes fatigue damage caused by frequent starts/stops or impacts, extending service life.
The multi-angle adaptability of spiral blades accommodates complex terrains and temperature fluctuations. Whether in extreme cold, heat, or humidity, the spiral structure maintains stable performance by facilitating smooth material flow, mitigating friction-induced heat or cold brittleness.
Product operate guide:
① Removing old blades:
1.Loosen the fixing bolts .
2.Tap the root of the blade with a pry bar to release the mechanical bite with the screw fabricator.
② New Blade Positioning
1.Direct the curved guide surface of the blades towards the direction of rotation of the spiral fabricator.
2.Align the mounting holes to ensure that there is no gap on the contact surface with the transition plate.
③ Fastening and Calibration
1.Tighten bolts in stages.
2.Check the parallelism between the end of the blade and the leading edge of the screed .
Product Parameters
Part Name | Auger Blade |
Machine | Asphalt paver |
Material | Steel |
Color | Silver |
Part Number | 4606302115 |
Blades dia | 400mm |
Center distance | 80*80mm |
Weight | About 10.3 kg/pcs |
MNQ | 1pcs |
