Product Introduction:

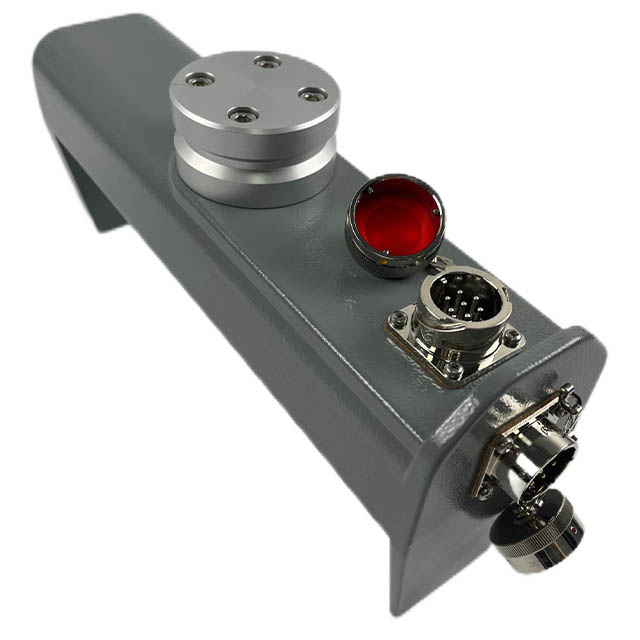

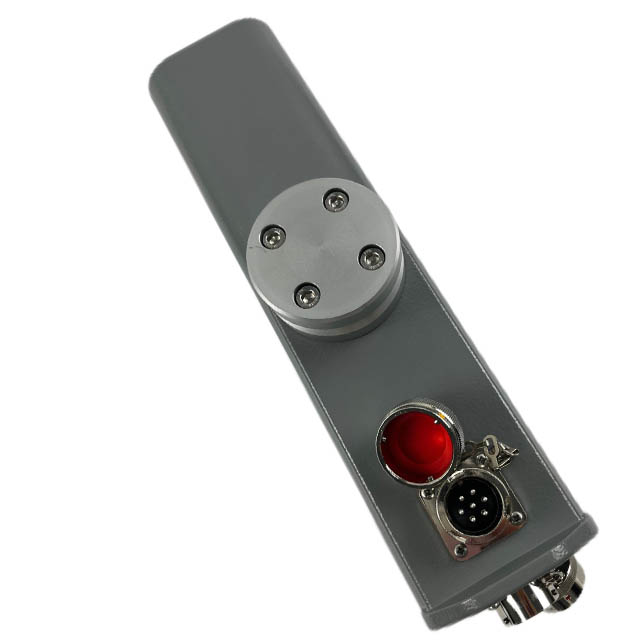

It uses ultrasonic waves to measure the distance between the paver and the surface being paved. The sensor emits ultrasonic waves and measures the time it takes for the waves to bounce back after hitting the target surface. By calculating this time, the distance can be accurately determined, providing real - time information about the height and slope of the paver relative to the ground.It is a multiple ultrasonic sensor suitable for various Vogele asphalt paver models, including Super 1100 - 2, Super 1300 - 2, Super 1600 - 1, Super 1600 - 2, Super 1800 - 1, Super 1800 - 2, and Super 3000 - 2.
How does the sonic sensor ensure accurate grade control?
Contact - free sensing technology: It adopts ultrasonic sensing technology to measure the distance from the ground, string line, or curb without physical contact. This non - contact measurement method avoids errors and wear caused by mechanical contact, and also improves the measurement accuracy and stability. It can adapt to different reference surfaces, providing maximum flexibility for grade control.

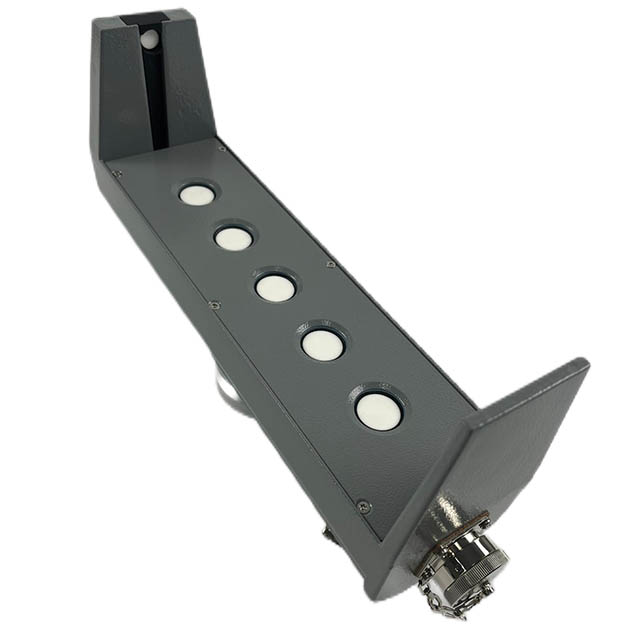

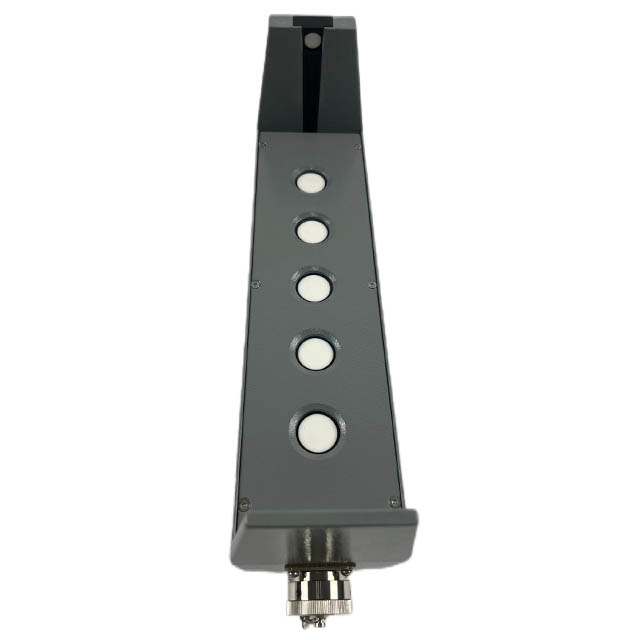

Multiple ultrasonic oscillators design: The sensor is equipped with multiple ultrasonic oscillators. Five of them are used to measure the distance to the reference point, which can obtain more accurate measurement data through multi - point measurement and average calculation. In addition, a sixth oscillator is used for real - time temperature compensation. Since the speed of ultrasonic waves is affected by temperature, the temperature - compensation function can correct the measurement results in real time according to the ambient temperature, further improving the measurement accuracy.
High - performance signal processing: It has strong anti - interference ability and can filter out various interference signals, such as electromagnetic interference and noise interference in the construction environment. This ensures the accuracy and stability of the measurement results, enabling the sensor to work stably in a complex electromagnetic environment. The internal signal processing circuit can also accurately calculate the distance information based on the received ultrasonic echo signals and convert it into a form that can be recognized by the paver's control system, providing accurate data support for grade control.
High - quality sealing and protection: The sensor has an ingress protection rating of IP67, which means it is dust - tight and protected against the effects of immersion in water. This protects the internal components of the sensor from being damaged by the harsh construction environment, such as dust, water, and vibration, ensuring the normal operation of the sensor and the accuracy of grade control.
How often does the sonic sensor need to be calibrated for accurate grade control?
There is no specific and fixed calibration cycle for the PN.2197266 sonic sensor, but it is generally recommended to calibrate it at least once before each major paving project or every 3 - 6 months. Here are the specific considerations:
Before major projects:Paving projects vary in scale and requirements. Calibrating the sensor before the start of a major project can ensure that it is in an optimal working state and provide accurate data support for the entire project, helping to achieve the expected paving grade accuracy.
Regular calibration interval: If the paver is in frequent use, it is advisable to calibrate the sensor every 3 - 6 months. This can promptly detect any deviations or drifts in the sensor's measurement performance due to factors such as long - term use, wear and tear, and environmental influences, and ensure its measurement accuracy is maintained within the required range.
In addition, if the sensor has been repaired, replaced, or has experienced abnormal vibrations, impacts, or changes in the working environment during use, it should be calibrated in a timely manner to ensure its accuracy and reliability.
Product Parameters
Part Name | Sonic Sensor |
Machine | asphalt paver |
Machine Model | Vogel |
Color | Gray |
Part Number | 2197266 |
Warranty | 1 Year |
weight | About 2.5 kg/pcs |
MNQ | 1pcs |
Product Introduction:
It uses ultrasonic waves to measure the distance between the paver and the surface being paved. The sensor emits ultrasonic waves and measures the time it takes for the waves to bounce back after hitting the target surface. By calculating this time, the distance can be accurately determined, providing real - time information about the height and slope of the paver relative to the ground.It is a multiple ultrasonic sensor suitable for various Vogele asphalt paver models, including Super 1100 - 2, Super 1300 - 2, Super 1600 - 1, Super 1600 - 2, Super 1800 - 1, Super 1800 - 2, and Super 3000 - 2.
How does the sonic sensor ensure accurate grade control?
Contact - free sensing technology: It adopts ultrasonic sensing technology to measure the distance from the ground, string line, or curb without physical contact. This non - contact measurement method avoids errors and wear caused by mechanical contact, and also improves the measurement accuracy and stability. It can adapt to different reference surfaces, providing maximum flexibility for grade control.
Multiple ultrasonic oscillators design: The sensor is equipped with multiple ultrasonic oscillators. Five of them are used to measure the distance to the reference point, which can obtain more accurate measurement data through multi - point measurement and average calculation. In addition, a sixth oscillator is used for real - time temperature compensation. Since the speed of ultrasonic waves is affected by temperature, the temperature - compensation function can correct the measurement results in real time according to the ambient temperature, further improving the measurement accuracy.
High - performance signal processing: It has strong anti - interference ability and can filter out various interference signals, such as electromagnetic interference and noise interference in the construction environment. This ensures the accuracy and stability of the measurement results, enabling the sensor to work stably in a complex electromagnetic environment. The internal signal processing circuit can also accurately calculate the distance information based on the received ultrasonic echo signals and convert it into a form that can be recognized by the paver's control system, providing accurate data support for grade control.
High - quality sealing and protection: The sensor has an ingress protection rating of IP67, which means it is dust - tight and protected against the effects of immersion in water. This protects the internal components of the sensor from being damaged by the harsh construction environment, such as dust, water, and vibration, ensuring the normal operation of the sensor and the accuracy of grade control.
How often does the sonic sensor need to be calibrated for accurate grade control?
There is no specific and fixed calibration cycle for the PN.2197266 sonic sensor, but it is generally recommended to calibrate it at least once before each major paving project or every 3 - 6 months. Here are the specific considerations:
Before major projects:Paving projects vary in scale and requirements. Calibrating the sensor before the start of a major project can ensure that it is in an optimal working state and provide accurate data support for the entire project, helping to achieve the expected paving grade accuracy.
Regular calibration interval: If the paver is in frequent use, it is advisable to calibrate the sensor every 3 - 6 months. This can promptly detect any deviations or drifts in the sensor's measurement performance due to factors such as long - term use, wear and tear, and environmental influences, and ensure its measurement accuracy is maintained within the required range.
In addition, if the sensor has been repaired, replaced, or has experienced abnormal vibrations, impacts, or changes in the working environment during use, it should be calibrated in a timely manner to ensure its accuracy and reliability.
Product Parameters
Part Name | Sonic Sensor |
Machine | asphalt paver |
Machine Model | Vogel |
Color | Gray |
Part Number | 2197266 |
Warranty | 1 Year |
weight | About 2.5 kg/pcs |
MNQ | 1pcs |
