Views: 0 Author: Site Editor Publish Time: 2026-03-18 Origin: Site
Asphalt milling is a critical process in road maintenance and construction. Whether you're working on large highways or small urban roads, choosing the right asphalt milling machine is crucial to ensuring the success of your project. But with various types of machines, parts, and features available, how do you decide which one fits your needs? This guide will help you understand the essential factors to consider when selecting the right asphalt milling machine.
Asphalt milling is the process of removing the top layer of asphalt from a road surface. It is done using a specialized piece of equipment known as an asphalt milling machine or cold planer. This process helps in resurfacing roads, recycling materials, and preparing the roadbed for new pavement.
An asphalt milling machine works by cutting into the existing asphalt layer and grinding it into smaller particles. These particles are then collected and can be reused for road reconstruction or other purposes. The milling machine uses a rotating cutter drum equipped with various cutting tools to grind the asphalt.
When choosing an asphalt milling machine, it's important to know the different types available. Each type is designed to handle specific project requirements, ranging from small-scale jobs to large highway reconstructions.
Full-size asphalt milling machines are used for large-scale projects, such as resurfacing highways, airport runways, and large roads. These machines are equipped with powerful engines, large cutter drums, and high-capacity conveyors. They are built to handle heavy-duty tasks and are ideal for deep milling operations.
Smaller asphalt milling machines are designed for urban environments and small road projects. These machines are compact, lightweight, and easy to maneuver, making them ideal for jobs where space is limited, such as resurfacing city streets or parking lots. They are typically used for shallow milling operations.
High-precision milling machines are specialized for jobs that require fine and accurate milling. These machines are often used for tasks such as surface preparation, leveling, and the removal of thin layers of asphalt. They are ideal for applications that demand high-quality, smooth finishes.
Asphalt milling machines are composed of several key components that work together to efficiently perform milling tasks. Understanding these parts is essential when selecting a machine that will meet your needs.
The cutter drum is the heart of an asphalt milling machine. It is the rotating drum that houses the cutting tools and does the actual grinding of the asphalt. The size and design of the cutter drum directly affect the machine's performance.
Size: The diameter and width of the drum determine the depth and width of the material that can be milled in a single pass. Larger drums are ideal for large-scale projects, while smaller drums are used for more precise or urban applications.
Material: Cutter drums are typically made from high-strength steel to withstand the harsh conditions of milling. Some drums feature hardened tips or replaceable teeth for improved durability and efficiency.
Teeth Design: Milling teeth are mounted on the cutter drum and are responsible for cutting through the asphalt. The design and material of these teeth are crucial for achieving optimal milling results.

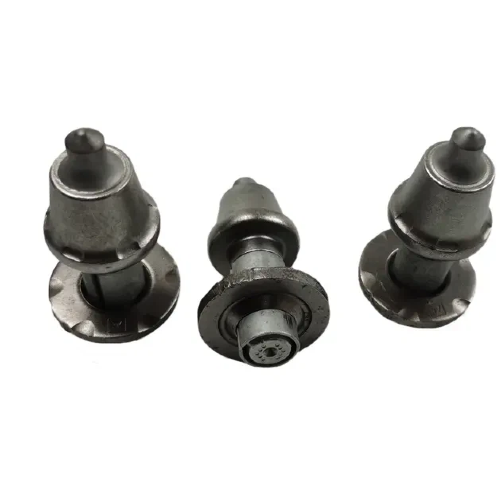

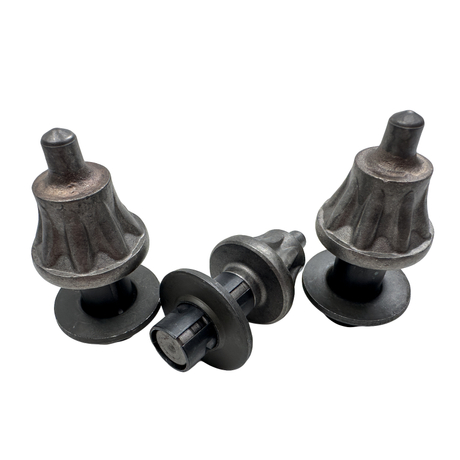

Cutter tools are the consumable parts of the milling machine that make contact with the asphalt. There are different types of milling teeth and picks, each designed for specific materials and road conditions.
Milling Teeth: These are the main components that grind the asphalt. They come in various shapes, including round, square, and pointed, each suited to different applications. The teeth are typically made from carbide or tungsten carbide for maximum wear resistance.
Picks: Picks are the smaller, secondary cutting tools that help break up the asphalt and allow the main teeth to work more effectively. They are often used in conjunction with the primary milling teeth.
The choice of milling teeth and picks depends on the hardness and condition of the asphalt being milled. For example, harder asphalt may require teeth with reinforced carbide tips to prevent premature wear.
The drive system is responsible for powering the asphalt milling machine. It consists of various components that transfer power from the engine to the cutting drum, conveyor system, and other moving parts.
Engine: The engine is typically a diesel-powered motor that provides the power needed to drive the machine. Full-size milling machines have more powerful engines, while smaller machines use less powerful engines for more efficient fuel consumption.
Hydraulic Drive: Many milling machines use a hydraulic drive system to control the movement of the cutter drum and other components. This system offers precise control over speed, cutting depth, and machine maneuverability.
The efficiency of the drive system is critical for ensuring that the milling machine operates smoothly, with consistent cutting depth and speed.
The conveyor system is responsible for removing the milled material from the cutting area and transporting it to the rear of the machine. It consists of a series of belts and rollers that carry the material away from the cutter drum.
Capacity: The conveyor’s capacity determines how much material it can handle at once. For large-scale projects, high-capacity conveyors are necessary to prevent material buildup.
Design: Some conveyors feature extendable or adjustable sections to accommodate different project needs. These features allow the conveyor to handle varying amounts of material and adjust to different site conditions.
The conveyor system plays a key role in maintaining productivity during milling operations. A reliable conveyor ensures a smooth flow of milled material and reduces downtime.
The hydraulic system controls the movement of various parts of the asphalt milling machine, such as the cutter drum, conveyor, and steering mechanism. Hydraulics provide the power needed for precise control of cutting depth and other key functions.
Hydraulic Motors and Cylinders: These components control the movement of the machine's various functions, allowing for smooth, precise adjustments during operation.
Pumps and Valves: Hydraulic pumps supply pressure to the system, while valves regulate the flow of hydraulic fluid to different components. Efficient hydraulic systems are essential for ensuring that the milling machine operates at peak efficiency.
Hydraulic systems offer the advantage of providing high torque and smooth operation, making them ideal for heavy-duty milling tasks.
Choosing the right asphalt milling machine depends on several factors, including the size of your project, the type of material being milled, and your specific needs for precision and power. Here are the key considerations to keep in mind:
The first step in choosing the right milling machine is assessing the scope and size of the project. For large-scale projects, such as resurfacing highways, you'll need a full-size milling machine with a large cutter drum and high-capacity conveyor system. Smaller projects, such as city streets or parking lots, may require a compact or small-scale milling machine that is easier to maneuver in tight spaces.
Project Type | Machine Type | Recommended Features |
Large Highway Resurfacing | Full-Size Milling Machine | Large cutter drum, high-capacity conveyor, powerful engine |
Urban Street Milling | Small-Scale Milling Machine | Compact design, maneuverability, smaller cutter drum |
Precision Milling | High-Precision Milling Machine | Accurate depth control, fine-cutting capability |
The power of the milling machine is another important factor to consider. Full-size milling machines typically have larger engines (ranging from 300 to 600 horsepower) to handle demanding projects, while smaller machines have engines in the range of 100 to 200 horsepower.
Efficiency is another critical aspect. Look for machines with fuel-efficient engines and those that can recycle the milled material, helping to reduce project costs and environmental impact.
The required milling depth will determine the type of machine you need. Some projects require deep milling to remove multiple layers of asphalt, while others only require a shallow mill to remove a thin layer for resurfacing.
High-precision machines are designed for tasks that require fine control over the milling depth. These machines are equipped with advanced hydraulics and depth control systems to ensure that the finished surface meets strict specifications.
For projects that require a versatile machine capable of handling different types of milling tasks, look for machines with customizable features. Some asphalt milling machines offer adjustable cutter drums, depth control mechanisms, and a range of attachments for different road conditions and project requirements.
Proper maintenance is crucial for ensuring the longevity and optimal performance of your asphalt milling machine. Regular inspection and timely replacement of parts can prevent downtime and reduce repair costs.
Routine maintenance should include checking the cutter drum, milling teeth, and hydraulic system for wear. The conveyor system should also be inspected for blockages or signs of damage.
Teeth Replacement: Milling teeth are subject to heavy wear, especially on hard asphalt. Replace teeth when they become worn or damaged to maintain cutting efficiency.
Hydraulic System Maintenance: Regularly check hydraulic fluid levels and ensure that the pumps and valves are functioning properly to prevent system failure.
Some parts, such as milling teeth and cutter drums, will need to be replaced periodically. It's essential to use high-quality replacement parts that are compatible with your milling machine to ensure optimal performance and reduce the risk of breakdowns.
Choosing the right asphalt milling machine is a crucial decision that can significantly impact the success of your road construction or resurfacing project. By carefully considering factors such as project size, machine power, milling depth, and essential components like the cutter drum and hydraulic system, we can help you select a machine that perfectly suits your needs.
At Suzhou Jestin Machinery Technology Co., Ltd., we understand the importance of having reliable, efficient equipment for your projects. Regular maintenance and choosing the right parts, such as milling teeth and cutter drums, are key to keeping your milling machine running at peak performance. Our products are designed to ensure smooth and efficient asphalt milling, delivering long-lasting results that meet your quality standards.
For more information on how we can support your project with high-quality milling machines and parts, feel free to get in touch with us. Our team is ready to assist you in selecting the right equipment and provide tailored solutions to help your project succeed.
Q1: How do I know if I need a full-size or small-scale asphalt milling machine?
A: Consider the project’s scale, road size, and job complexity. Full-size machines are ideal for large roads, while smaller ones are suited for tight or urban areas.
Q2: What is the most important factor when selecting milling teeth for my machine?
A: The material of the teeth, their hardness, and wear resistance. Choose teeth based on the type of asphalt you will be milling (e.g., harder for dense materials).
Q3: How often should I replace the cutter drum and milling teeth?
A: It depends on usage and wear. Regular inspection is key. Typically, teeth should be replaced when they show significant wear, and the drum when it’s excessively worn.
Q4: Are there eco-friendly asphalt milling machines?
A: Yes, some models are designed with better fuel efficiency and reduced emissions, making them more environmentally friendly.
Q5: Can I upgrade my milling machine with additional parts or features?
A: Yes, many asphalt milling machines offer customizable features like additional attachments for specific tasks or advanced hydraulics for better precision.
