54612726
JESTIN
Availability: | |
---|---|
Quantity: | |
Product Introduction:

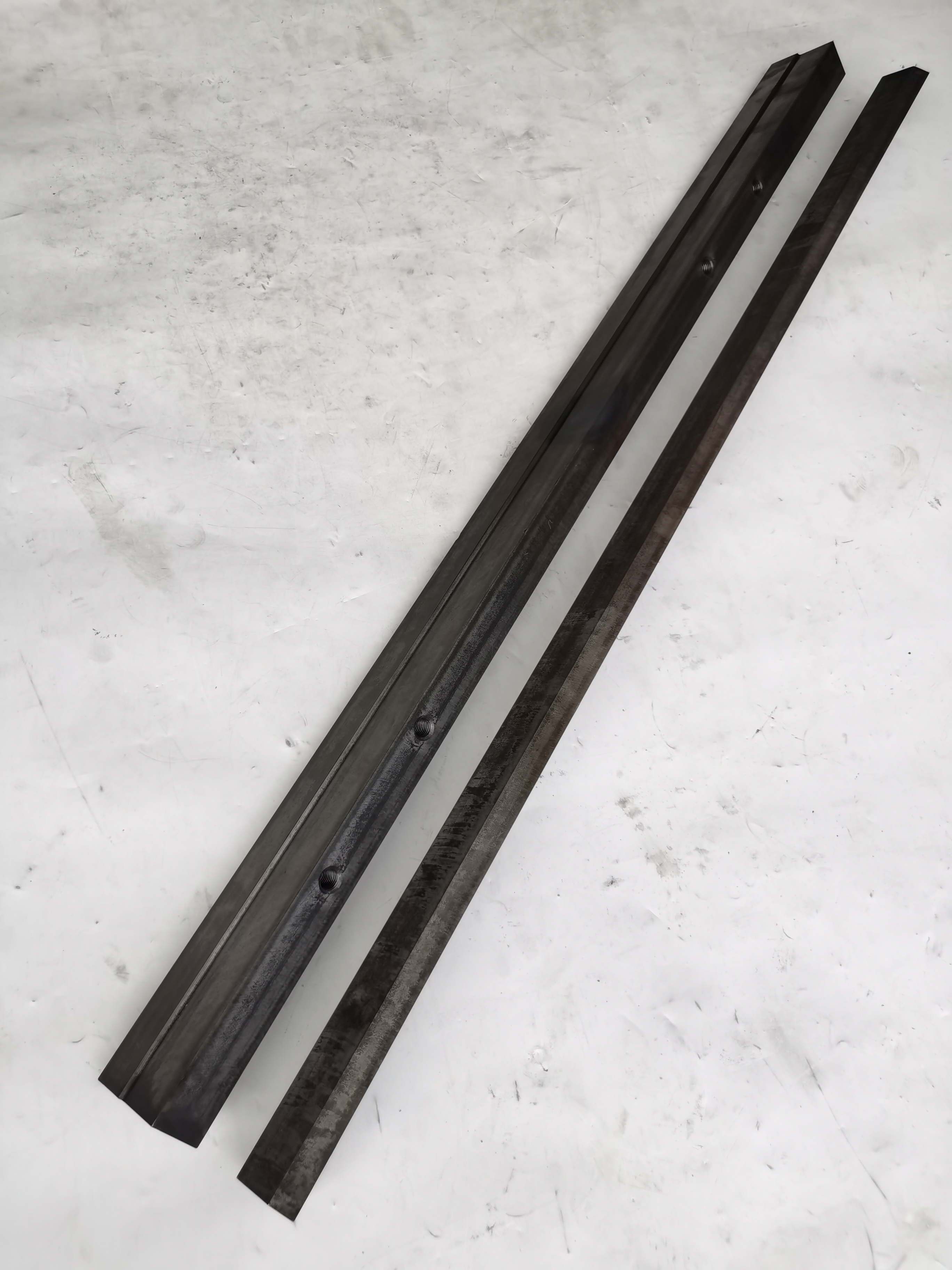

54612726 is a tamper bar used on basic screed CRAWLER ASPHALT PAVER VOLVO VB 78 GTC VB 78 GTC 2.5 - 9.0M ABG5820/6820/7820/7820B.
The tamper bars on the screed plates of asphalt pavers are key components for pre - compacting asphalt mixtures. They are usually driven by a hydraulic system and can adjust the vibration frequency and amplitude. Their function is to improve the flatness and compactness of the paved layer, and they are an important part of ensuring the construction quality of asphalt pavement.
How to maintain and repair tamper bars?
Routine Maintenance (Pre/Post-Operation & Regular Checks)
Lubricate bearings, pivot points, and drive chains/belts of the tamper bar system with high-temperature grease (suitable for asphalt paving heat, ~150–180°C).
For auto-lubrication systems, check oil levels weekly and replace filters monthly; manually grease non-auto-lubed parts (e.g., linkage pins) every 8–12 working hours.
Check for physical damage: Cracks, bends, or wear on tamper bar surfaces (replace bars if wear exceeds 3mm, as it reduces compaction force).
Inspect drive components: Ensure chains/belts are tight (no slack) and free of fraying; check hydraulic hoses (for leaks) and electrical connections (if motor-driven) for looseness.
Verify vibration consistency: Run the tamper briefly—uneven vibration may indicate bearing wear or drive system issues.
RM87936910 Screed
RM56293822 Drive shaft2
RM56293996 Drive shaft
RM54612718 Bar97
RM80628431 Bar3
RM54612726 Bar
RM80628431 Bar
RM96720040 Hexagon screw
RM96704937 Hexagon screw
RM96722632 Hexagon screw
RM96719182 Hexagon nut
VOE955793 Hexagon nut
RM14261028 Lock washer
RM96726138 Plain washer
RM96726153 Plain washer
RM14261036 Lock washer
RM56291602 Knife blade
RM56291651 Knife blade
RM54612718 Bar
RM54612726 Bar
RM56296429 Tension block
RM56296437Tension block
RM56296452 Angle barG
RM56296445 Angle plateRM56296627 PlateUC
RMM87984290 Flat bar steel4
RM56296585 Heating pipe
RM80633266 Heating pipe
RM96714266 Hexagon screw10 RM96713243 Hexagon screw
RM58832916 Lock washer
RM14098370 Hexagon nut
RM96712799 Hexagon nut
RM87983227 Plug
RM80639545 Plug
Product Parameters
Part Name | Tamper bar |
Screed | VB78 |
Part Number | 54612726 |
Quality | High Guarantee |
Weight | About 50kg/pcs |
MNQ | 1pcs |
Size | 1.25M |
Apply To | Asphalt Paver |
Product Introduction:
54612726 is a tamper bar used on basic screed CRAWLER ASPHALT PAVER VOLVO VB 78 GTC VB 78 GTC 2.5 - 9.0M ABG5820/6820/7820/7820B.
The tamper bars on the screed plates of asphalt pavers are key components for pre - compacting asphalt mixtures. They are usually driven by a hydraulic system and can adjust the vibration frequency and amplitude. Their function is to improve the flatness and compactness of the paved layer, and they are an important part of ensuring the construction quality of asphalt pavement.
How to maintain and repair tamper bars?
Routine Maintenance (Pre/Post-Operation & Regular Checks)
Lubricate bearings, pivot points, and drive chains/belts of the tamper bar system with high-temperature grease (suitable for asphalt paving heat, ~150–180°C).
For auto-lubrication systems, check oil levels weekly and replace filters monthly; manually grease non-auto-lubed parts (e.g., linkage pins) every 8–12 working hours.
Check for physical damage: Cracks, bends, or wear on tamper bar surfaces (replace bars if wear exceeds 3mm, as it reduces compaction force).
Inspect drive components: Ensure chains/belts are tight (no slack) and free of fraying; check hydraulic hoses (for leaks) and electrical connections (if motor-driven) for looseness.
Verify vibration consistency: Run the tamper briefly—uneven vibration may indicate bearing wear or drive system issues.
RM87936910 Screed
RM56293822 Drive shaft2
RM56293996 Drive shaft
RM54612718 Bar97
RM80628431 Bar3
RM54612726 Bar
RM80628431 Bar
RM96720040 Hexagon screw
RM96704937 Hexagon screw
RM96722632 Hexagon screw
RM96719182 Hexagon nut
VOE955793 Hexagon nut
RM14261028 Lock washer
RM96726138 Plain washer
RM96726153 Plain washer
RM14261036 Lock washer
RM56291602 Knife blade
RM56291651 Knife blade
RM54612718 Bar
RM54612726 Bar
RM56296429 Tension block
RM56296437Tension block
RM56296452 Angle barG
RM56296445 Angle plateRM56296627 PlateUC
RMM87984290 Flat bar steel4
RM56296585 Heating pipe
RM80633266 Heating pipe
RM96714266 Hexagon screw10 RM96713243 Hexagon screw
RM58832916 Lock washer
RM14098370 Hexagon nut
RM96712799 Hexagon nut
RM87983227 Plug
RM80639545 Plug
Product Parameters
Part Name | Tamper bar |
Screed | VB78 |
Part Number | 54612726 |
Quality | High Guarantee |
Weight | About 50kg/pcs |
MNQ | 1pcs |
Size | 1.25M |
Apply To | Asphalt Paver |
