Product Introduction:
he AB500-2TV is a model within Vögele’s AB500-2 series of screeds. This series features hydraulically extendable screeds with a basic width of 2.55 meters and a stepless width adjustment range from 2.55 meters to 5 meters. With bolt-on extension modules, the maximum paving width can reach up to 8 meters. The "TV" designation indicates that this screed is equipped with both a tamper and a vibrator—key components for compacting paved materials such as asphalt.
Support and Fixation: As the core load-bearing component, it supports and fixes each component of the screed.
Heat Conduction: Uniformly distributes heat through metal materials to ensure consistent temperature on the working surface of the screed.
Vibration Transmission: Transmits the excitation force of the vibration device to the working surface of the screed to assist in dense paving of materials.
Structural Stability: Maintains the overall rigidity of the screed, reduces deformation, and ensures construction flatness.
Installation Reference: Provides an installation foundation for other functional modules.
What is the difference between material Hardox450 and NM450?
Manufacturer and Brand
Hardox450: It is a wear - resistant steel brand produced by SSAB, a Swedish steel company. Hardox is a globally recognized brand in the industry.
NM450: It is a Chinese - standard wear - resistant steel grade, produced by various domestic steel manufacturers, without a specific exclusive brand.
Chemical Composition
Hardox450: Has a specific chemical composition defined by SSAB, generally featuring low carbon content and containing alloying elements such as manganese, chromium, and boron.
NM450: The chemical composition includes elements like carbon, manganese, silicon, phosphorus, sulfur, chromium, nickel, and molybdenum. However, the specific composition may vary among different manufacturers as long as the required mechanical properties are met.
Mechanical Properties
Tensile Strength: The minimum specified tensile strength of Hardox450 is 1300 MPa. The tensile strength of NM450 typically ranges from 1250 MPa to 1450 MPa.
Impact Toughness: Hardox450 is renowned for its excellent impact toughness. For example, for a 20 - mm - thick steel plate, the Charpy - V longitudinal impact energy at - 40 °C is 45 J. NM450 may also have good impact toughness, but the specific values can vary depending on the manufacturer and heat treatment process.
Availability
Hardox450: As a globally recognized brand, it is readily available from authorized distributors worldwide.
NM450: As a Chinese standard, it may be more easily accessible in China or through specific suppliers.
| AB500-2TV | 2042535 |
| 2042536 | |
| 2042538 | |
| 2042539 | |
| AB500-3TP | 2201289 |
| 2201290 | |
| 2202435 | |
| 2202445 | |
| AB600TV | 4602428171 |
| 4602428170 | |
| 4602428173 | |
| 4602428174 | |
| AB600-2TV | 2052858 |
| 2052859 | |
| 2052887 | |
| 2052893 | |
| AB600-3TV | 2211817 |
| 2211812 | |
| 2211964 | |
| 22119647 | |
| AB575TV | 4602424955 |
| 4602424956 | |
| 4602424958 | |
| 4602424959 |
Product Parameters

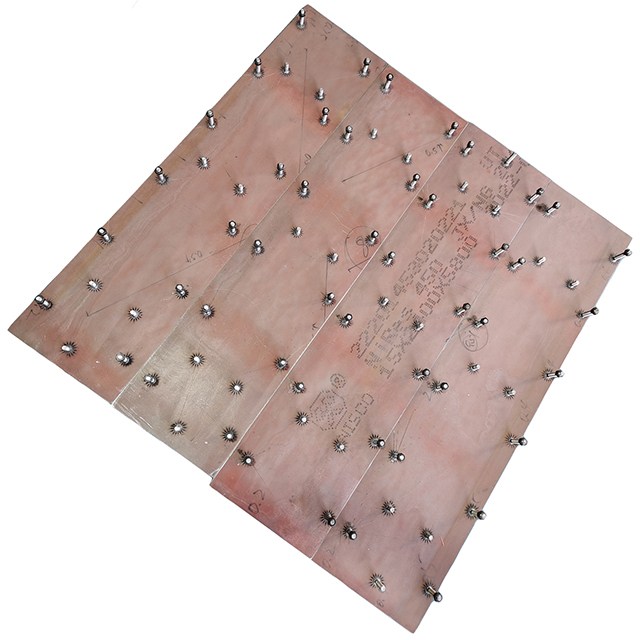

Part Name | Screed plates |
Screed | AB500-2TV |
Part Number | 2042536 2042535 |
Quality | High Guarantee |
Weight | About 50kg/pcs |
MNQ | 1pcs |
Size | 1.25M |
Apply To | Asphalt Paver |
Product Introduction:
he AB500-2TV is a model within Vögele’s AB500-2 series of screeds. This series features hydraulically extendable screeds with a basic width of 2.55 meters and a stepless width adjustment range from 2.55 meters to 5 meters. With bolt-on extension modules, the maximum paving width can reach up to 8 meters. The "TV" designation indicates that this screed is equipped with both a tamper and a vibrator—key components for compacting paved materials such as asphalt.
Support and Fixation: As the core load-bearing component, it supports and fixes each component of the screed.
Heat Conduction: Uniformly distributes heat through metal materials to ensure consistent temperature on the working surface of the screed.
Vibration Transmission: Transmits the excitation force of the vibration device to the working surface of the screed to assist in dense paving of materials.
Structural Stability: Maintains the overall rigidity of the screed, reduces deformation, and ensures construction flatness.
Installation Reference: Provides an installation foundation for other functional modules.
What is the difference between material Hardox450 and NM450?
Manufacturer and Brand
Hardox450: It is a wear - resistant steel brand produced by SSAB, a Swedish steel company. Hardox is a globally recognized brand in the industry.
NM450: It is a Chinese - standard wear - resistant steel grade, produced by various domestic steel manufacturers, without a specific exclusive brand.
Chemical Composition
Hardox450: Has a specific chemical composition defined by SSAB, generally featuring low carbon content and containing alloying elements such as manganese, chromium, and boron.
NM450: The chemical composition includes elements like carbon, manganese, silicon, phosphorus, sulfur, chromium, nickel, and molybdenum. However, the specific composition may vary among different manufacturers as long as the required mechanical properties are met.
Mechanical Properties
Tensile Strength: The minimum specified tensile strength of Hardox450 is 1300 MPa. The tensile strength of NM450 typically ranges from 1250 MPa to 1450 MPa.
Impact Toughness: Hardox450 is renowned for its excellent impact toughness. For example, for a 20 - mm - thick steel plate, the Charpy - V longitudinal impact energy at - 40 °C is 45 J. NM450 may also have good impact toughness, but the specific values can vary depending on the manufacturer and heat treatment process.
Availability
Hardox450: As a globally recognized brand, it is readily available from authorized distributors worldwide.
NM450: As a Chinese standard, it may be more easily accessible in China or through specific suppliers.
| AB500-2TV | 2042535 |
| 2042536 | |
| 2042538 | |
| 2042539 | |
| AB500-3TP | 2201289 |
| 2201290 | |
| 2202435 | |
| 2202445 | |
| AB600TV | 4602428171 |
| 4602428170 | |
| 4602428173 | |
| 4602428174 | |
| AB600-2TV | 2052858 |
| 2052859 | |
| 2052887 | |
| 2052893 | |
| AB600-3TV | 2211817 |
| 2211812 | |
| 2211964 | |
| 22119647 | |
| AB575TV | 4602424955 |
| 4602424956 | |
| 4602424958 | |
| 4602424959 |
Product Parameters
Part Name | Screed plates |
Screed | AB500-2TV |
Part Number | 2042536 2042535 |
Quality | High Guarantee |
Weight | About 50kg/pcs |
MNQ | 1pcs |
Size | 1.25M |
Apply To | Asphalt Paver |
